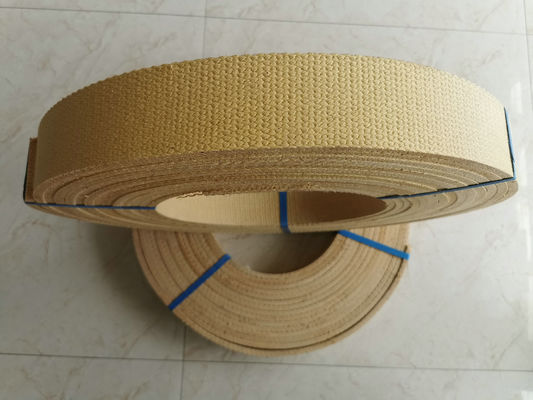

Wear Resistant 10m/Roll Non Asbestos Woven Brake Lining

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Woven Brake Lining With Resin Product Color Brown
Application Anchor, Crane, Drilling Machine, Ship Winch Barke Lining Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls
High Light

10m/Roll Asbestos Free Brake Lining

,

Wear Resistant Woven Brake Lining

,

Resin Winch Woven Brake Lining

Leave a Message
Product Description

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining





Supply Ability
Supply Ability:
20 Tons
Packaging & Delivery
Packaging Details
Standard Packing For Shipment
Port
Ningbo
Lead Time :
30days After Received Payment





1. Hot- Resistence
2. Long-Time Using
3. High Quality Raw
4,Wear-Resistant ,Low-Noise,Less-Dust
5,Safe And Reliabl.
6,Competitive Pricing And Quality Assured Products
7,Using Life Of Brake Lining :40000km



Wear Resistant 10m/Roll Non Asbestos Woven Brake Lining 0



Wear Resistant 10m/Roll Non Asbestos Woven Brake Lining 1



Quick Detail:



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m



Description:



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Brake Lining is extensively used in marine and industrial applications. It is suitable for

winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural

vehicle, elevator, and construction machinery.











Specifications:



Temperature

Coefficient of friction(μ)

Wear rate(v)(cm³/N.m)

100℃

0.35~0.65

≤0.7 x 10-7

150℃

0.35~0.65

≤1.1 x 10-7

200℃

0.30~0.60

≤1.5 x 10-7

250℃

0.25~0.60

≤2.5 x 10-7











Competitive Advantage:

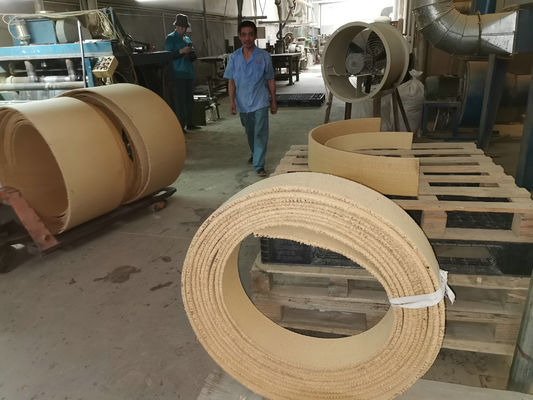

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls, so that we  could control the quanlity and cost very well.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
