Anchor Windlass Melamine Resin Woven Brake Lining

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Asbestos-Free Woven Brake Lining Anchor Windlass Brake Melamine Resin Industrial Brake Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Asbestos Free Woven Brake Lining

,

Melamine Resin Woven Brake Lining

,

Anchor Windlass Woven Brake Lining

Leave a Message
Product Description

Asbestos-Free Woven Brake Lining anchor windlass brake melamine resin industrial brake



Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European and American markets. As the leader manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment,Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

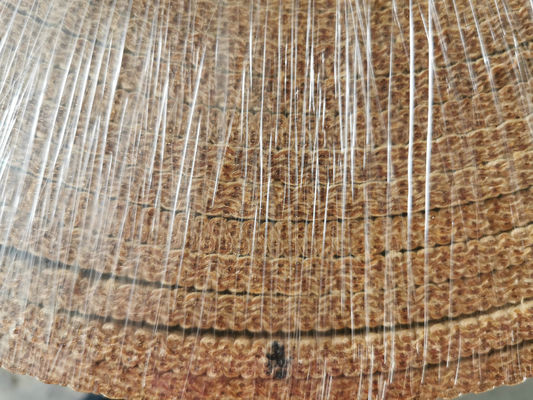

Anchor Windlass Melamine Resin Woven Brake Lining 0



Anchor Windlass Melamine Resin Woven Brake Lining 1





Anchor Windlass Melamine Resin Woven Brake Lining 2







Specifications:Asbestos-Free Woven Brake Lining anchor windlass brake melamine resin industrial brake

Temperature

Coefficient of friction(μ)

Wear rate(v)(cm³/N.m)

100℃

0.35~0.65

≤0.7 x 10-7

150℃

0.35~0.65

≤1.1 x 10-7

200℃

0.30~0.60

≤1.5 x 10-7

250℃

0.25~0.60

≤2.5 x 10-7











Competitive Advantage:Asbestos-Free Woven Brake Lining anchor windlass brake melamine resin industrial brake



Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.

Anchor Windlass Melamine Resin Woven Brake Lining 3Anchor Windlass Melamine Resin Woven Brake Lining 4
