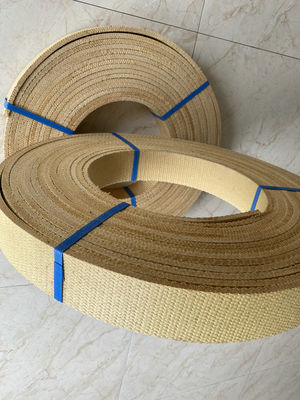

Winch Viscose Fiber Brass Wires Woven Brake Lining
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-M |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Non-asbestos Woven Brake Lining Brass Wires, Viscose Fiber, Aramid Fiber Anchor Brake | Product Color | Brown |
|---|---|---|---|
| Application | Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| Woven | Woven Brake Lining Asbestos Free Woven Brake Lining Rolls | Resin | Melamine Resin |
| Main Raw Material | Non-asbestos Yarns | Color | Yellow |
| High Light | Brass Wires Woven Brake Lining,Viscose Fiber Woven Brake Lining,Winch Woven Brake Lining |
||
Product Description
Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
Ningbo Xinyan Friction Materials Co., Ltd. is a professional manufacturer of non asbestos woven brake lining. Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations.
Quick Detail:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Specifications:Non-asbestos Woven Brake Lining brass wires, viscose fiber, Aramid fiber anchor brake
|
Temperature |
Coefficient of friction(μ) |
Wear rate(v)(cm³/N.m) |
|
100℃ |
0.35~0.65 |
≤0.7 x 10-7 |
|
150℃ |
0.35~0.65 |
≤1.1 x 10-7 |
|
200℃ |
0.30~0.60 |
≤1.5 x 10-7 |
|
250℃ |
0.25~0.60 |
≤2.5 x 10-7 |
