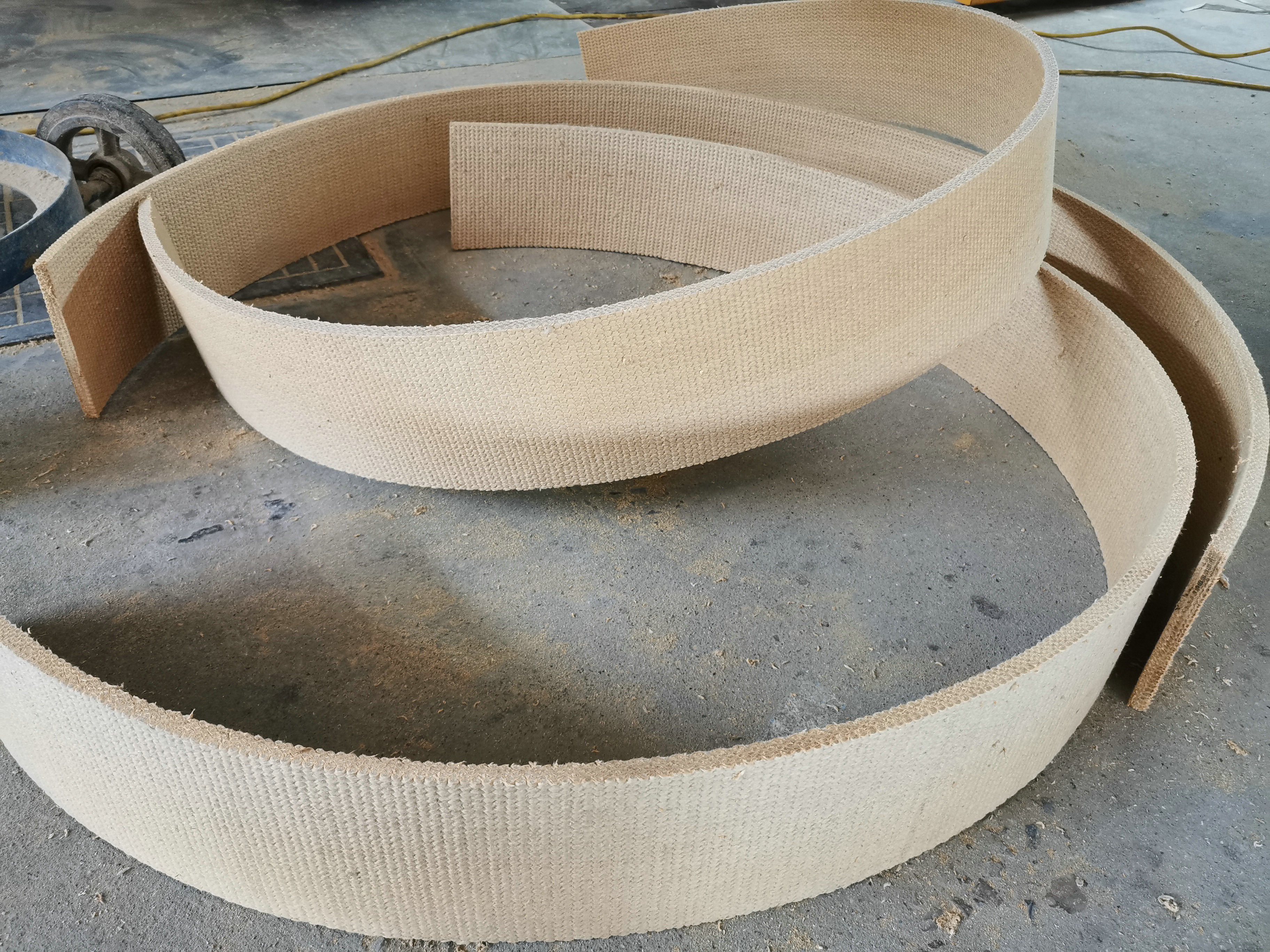

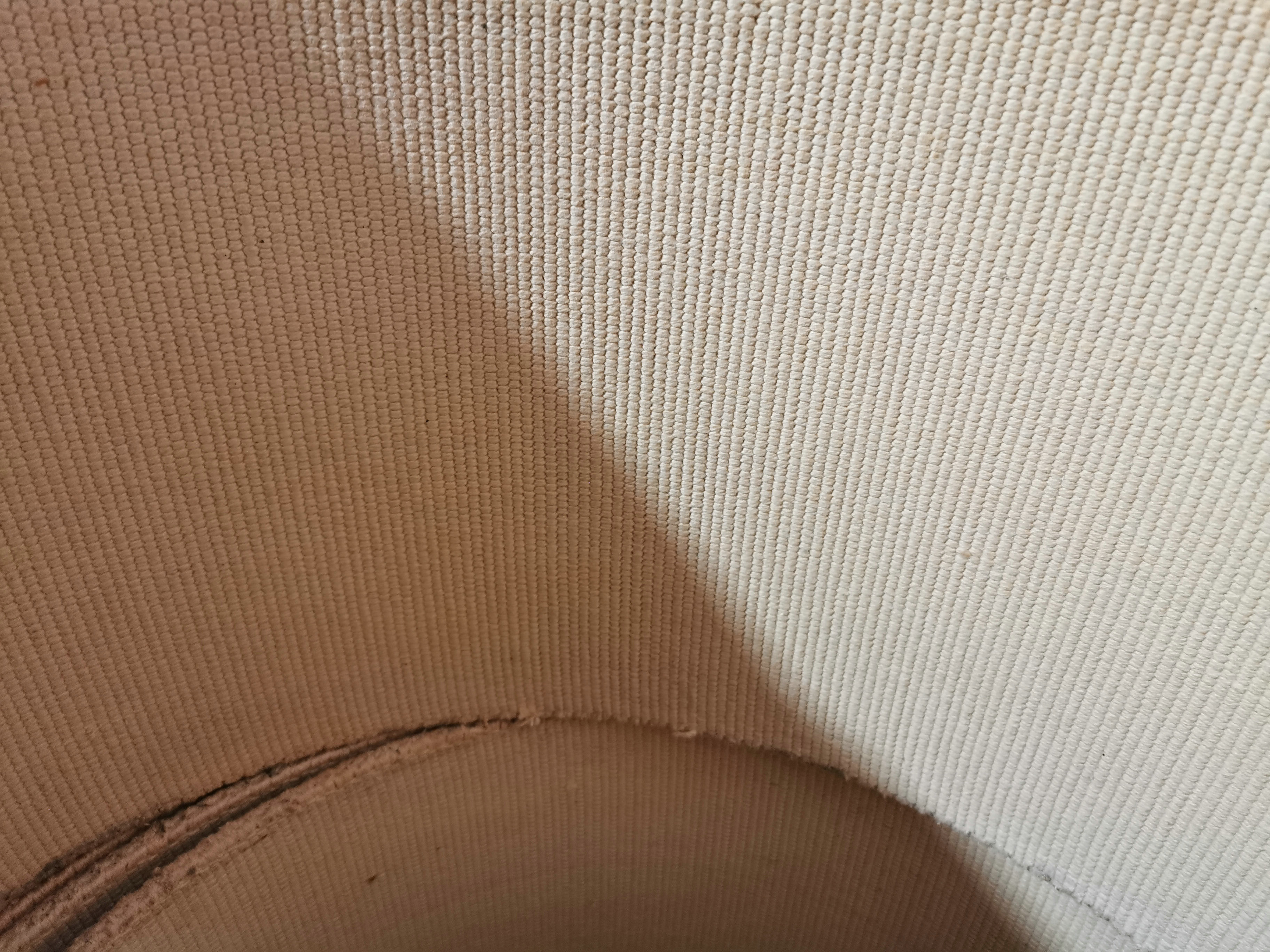

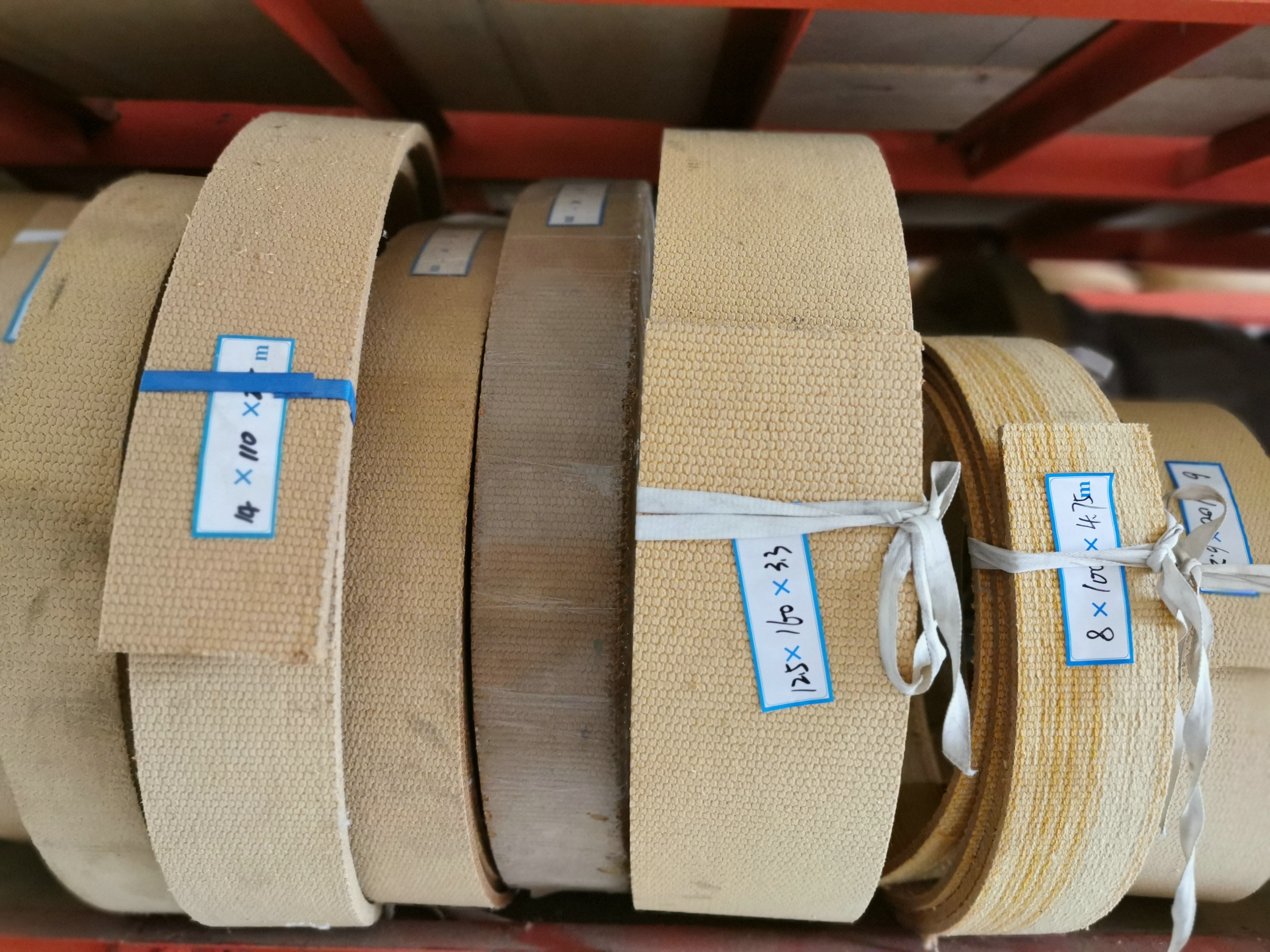

Yellow 15m/Roll Ship Anchor Hoist Woven Brake Lining
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-M |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Non-asbestos Woven Brake Lining Low Wear Rate Brake Brass Wire Ship Anchor Brake | Product Color | Brown |
|---|---|---|---|
| Application | Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| Woven | Woven Brake Lining Asbestos Free Woven Brake Lining Rolls | Resin | Melamine Resin |
| Main Raw Material | Non-asbestos Yarns | Color | Yellow |
| High Light | Ship Anchor Brake Lining,Yellow Woven Brake Lining,Hoist Woven Brake Lining |
||
Product Description
Non-asbestos Woven Brake Lining low wear rate brake brass wire ship anchor brake
Quick Detail:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship anchor brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.
Description:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship anchor brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Applications:Woven Brake Lining is extensively used in marine and industrial applications. It is suitable for winch and windlass, hoist, crane, winder, drilling and workoverrigs, agricultural vehicle, elevator, industrial drum brakes, mining machinery and construction machinery. When it is supplied for use on oil immersed applications,the friction value will be much lower than it is used in dry conditions.
Specifications:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship anchor brake
|
Temperature |
Coefficient of friction(μ) |
Wear rate(v)(cm³/N.m) |
|
100℃ |
0.35~0.65 |
≤0.7 x 10-7 |
|
150℃ |
0.35~0.65 |
≤1.1 x 10-7 |
|
200℃ |
0.30~0.60 |
≤1.5 x 10-7 |
|
250℃ |
0.25~0.60 |
≤2.5 x 10-7 |
Non-asbestos Woven Brake Lining low wear rate brake brass wire ship anchor brake
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
