Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship Anchor Brake Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship Anchor Brake Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Brass Wire Reinforced Winch Brake Lining

,

Non Asbestos Woven Winch Brake Lining

,

15 Meters Woven Brake Lining Roll

Leave a Message
Product Description

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

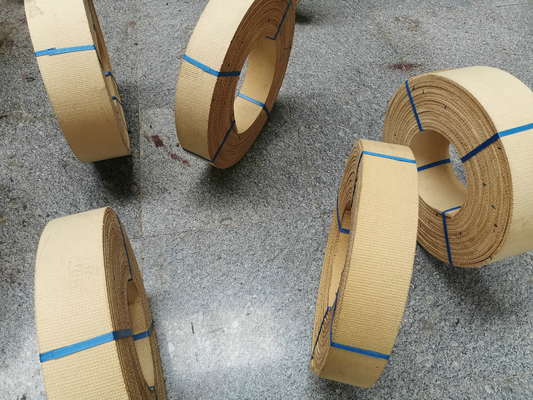

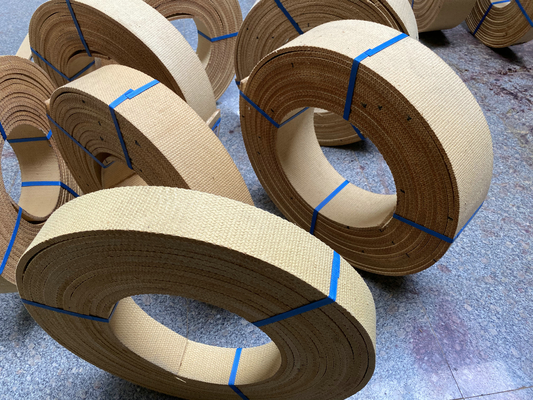

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 0Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 1

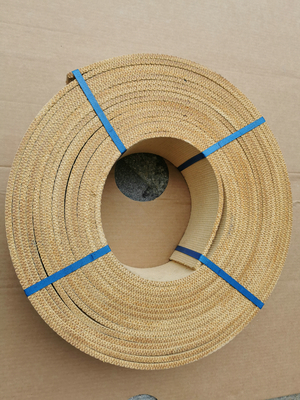

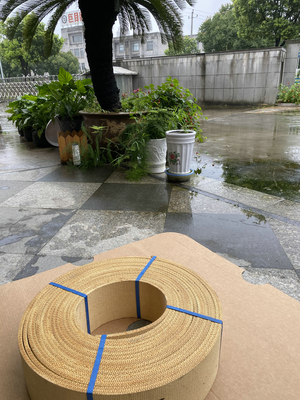

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 2Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 3



Specifications:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced anchor winch brake



Competitive Advantage:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced anchor winch brake

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.





Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

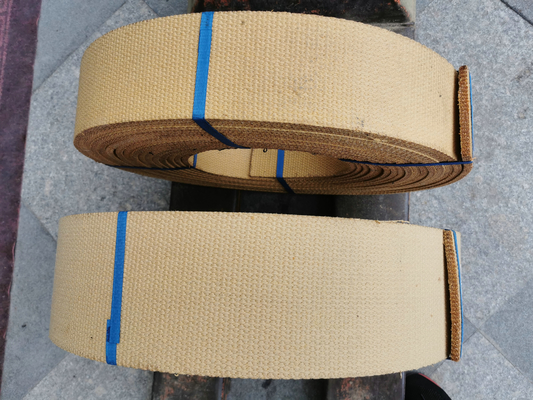

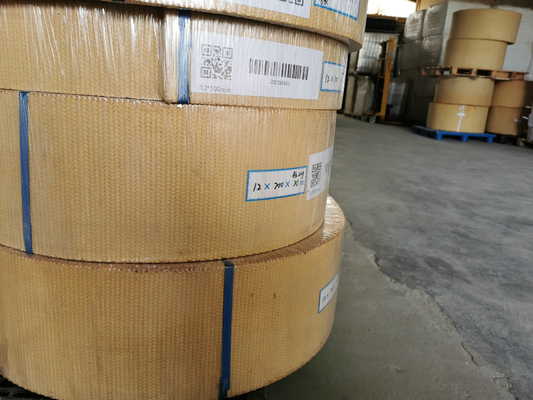

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 4Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake 5
