GB/T 19001 Anchor Windlass Mooring Winch Woven Brake Lining Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons
Product Details
Product Name Non Asbestos Woven Brake Lining Roll For Anchor Windlass Mooring Winch Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Non Asbestos Woven Brake Lining Roll For Anchor Windlass Mooring Winch Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Anchor Windlass Woven Brake Lining Roll

,

GB/T 19001 Woven Brake Lining Roll

,

Mooring Winch Brake Lining Roll

Leave a Message
Product Description

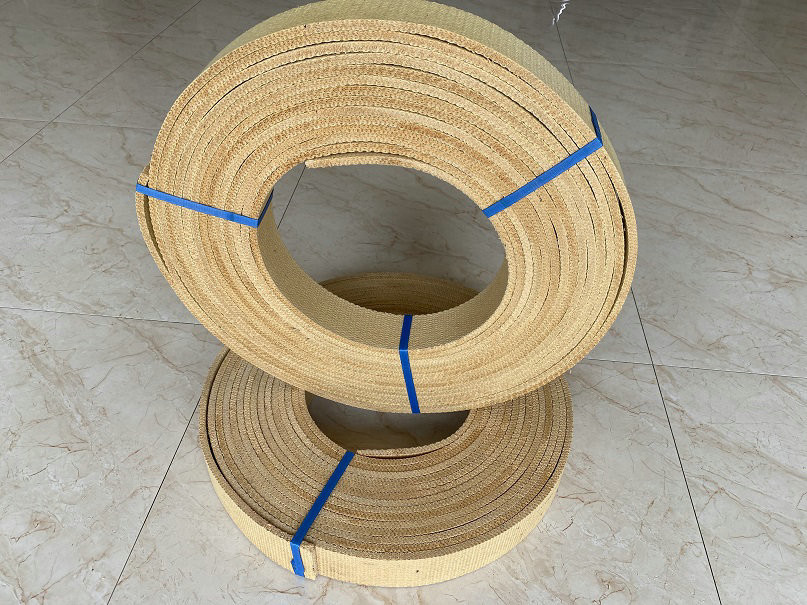

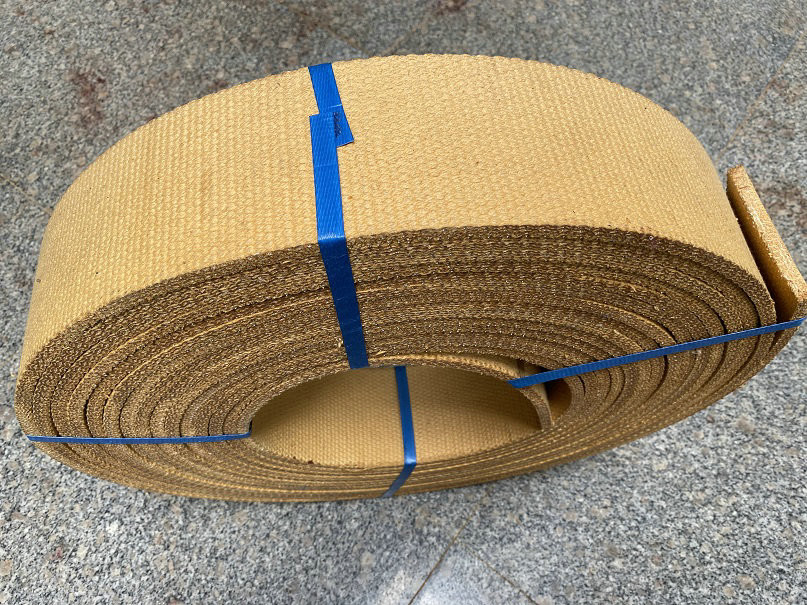

Non Asbestos Woven Brake Lining Roll for Anchor Windlass Mooring Winch

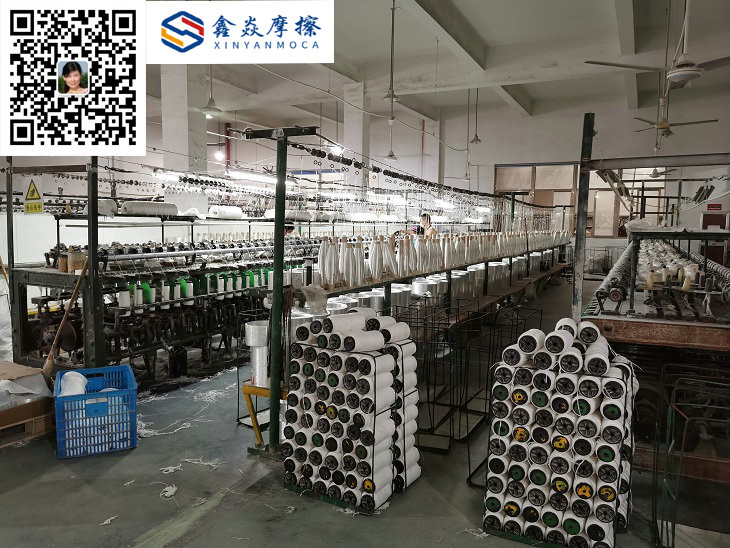

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Quick Detail:Non Asbestos Woven Brake Lining Roll for Anchor Windlass Mooring Winch




Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Non Asbestos Woven Brake Lining Roll for Anchor Windlass Mooring Winch
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

 GB/T 19001 Anchor Windlass Mooring Winch Woven Brake Lining Roll 0




Specifications:Non Asbestos Woven Brake Lining Roll for Anchor Windlass Mooring Winch



Competitive Advantage:

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

GB/T 19001 Anchor Windlass Mooring Winch Woven Brake Lining Roll 1
