Good quality woven brake lining non asbestos winch brake lining in roll

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Minimum Order Quantity 0.5 TON
Price Negotiated
Packaging Details Exporting standard pallet
Delivery Time 5-8 weeks after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyword Good Quality Woven Brake Lining Non Asbestos Winch Brake Lining In Roll Packing Woven Bag, Pallet, Exporting Wooden Case
Thickness 5-30mm Width <500mm
Strength 10m,15m,20m/ Roll Max Temperature 200 Celsius Degrees
High Light

alkali resistant glass fiber tape

,

high temperature fiberglass woven tape

Leave a Message
Product Description

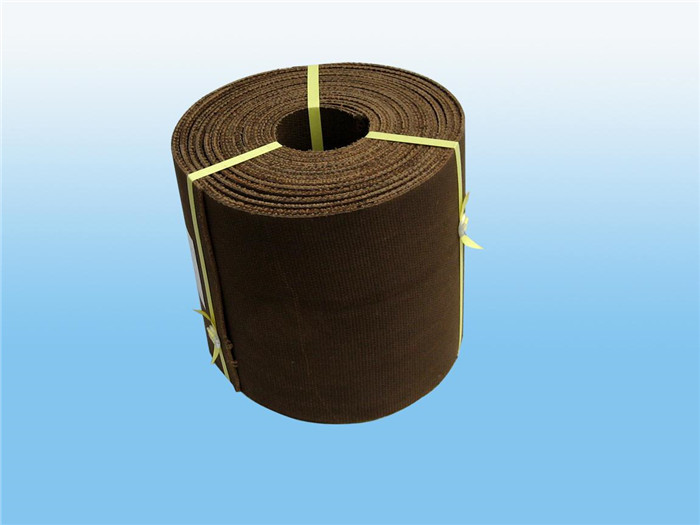

Good quality woven brake lining non asbestos winch brake lining in roll





BXS-M

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: Widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow

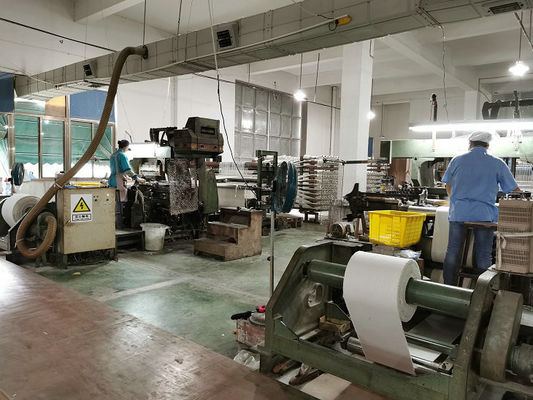

Ningbo Xinyan Friction Materials Co., Ltd., located in Simen Industrial Park, National Highway 329, with convenient transportation. The company covers an area of 6,000 square meters. It is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials. The company has strong technical strength, advanced equipment, in line with the "people-oriented, pragmatic and innovative" company concept, constantly using new technologies, new equipment, new materials, new technology, and strive to do better, to develop more new friction, sealing, anti-corrosion, insulation, fire prevention materials to meet the needs of customers at home and abroad. The company's product quality meets the national standards, and has been sold to more than 20 provinces and regions, more than a dozen countries and regions, deeply favored by customers at home and abroad! Our company will have high quality service, reliable quality, sincerely welcome customers at home and abroad to consult and negotiate, thank you for the cooperation!
