High Intensity Resin woven roll brake lining asbestos free anchor brake lining
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | ISO9001,CTI |
| Minimum Order Quantity | 0.5 TON |
| Price | Negotiated |
| Packaging Details | Exporting standard pallet |
| Delivery Time | 5-8 weeks after down payment |
| Payment Terms | T/T, 30% Down Payment before production, 70% Balance paid before shipment |
| Supply Ability | 20 ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Intensity Resin Woven Roll Brake Lining Asbestos Free Anchor Brake Lining | Packing | Woven Bag, Pallet, Exporting Case |
|---|---|---|---|
| Thickness | 5-30mm | Width | <500mm |
| Strength | 10m, 15m, 20m/ Roll | Max Temperature | 200 Celsius Degrees |
| High Light | high temperature fiberglass woven tape,fiberglass pipe insulation tape |
||
Product Description

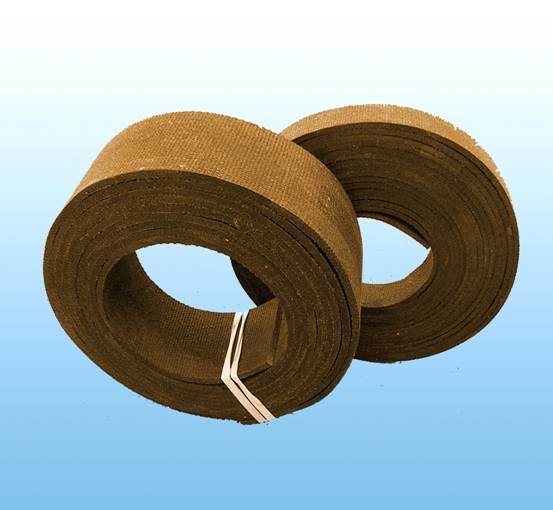

High Intensity Resin woven roll brake lining asbestos free anchor brake lining
Description:
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Applications:
It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.
Specifications:
Performance of HFS-Y
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.40–0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35–0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30–0.60 | ≤1.3 x 10-7 |
Competitive Advantage:
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
