Compressed Non Asbestos Jointing Sheet Durable Dependable Performance

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Model Number 1920,1930,1940
Minimum Order Quantity 0.5 ton
Price negotiated
Packaging Details Exporting Standard Pallet
Delivery Time 5-8 weeks after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Non Asbestos Gasket Sheet Feature Wide Range Of Temperatures
Material Sepiolite Fibre, NR, NBR, Aramid Fiber Etc. Pressure 2.0-5.0Mpa
Temperature 200-500 Celsius Degrees Usual Color Green, Blue, Black, Red
High Light

oil resistant sheets


steam jointing sheet

Leave a Message
Product Description

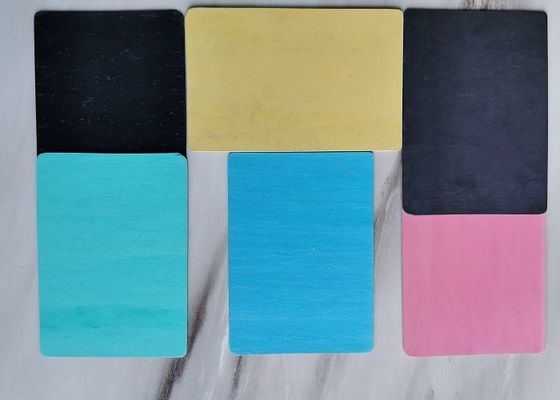

Compressed Non Asbestos Jointing Sheet Durable Dependable Performance




Non Asbestos Gasket Sheet is made from kevlar fiber, NBR, aramid fiber, filling materials and dye.Compressed and calendered under high temperature and pressure into a sheet form.It eliminates asbestos rubber sheet essentially and thoroughly.Can be used in oil conditions.


Quick Detail:


Name: Non Asbestos Gasket Sheet

Material: Sepiolite fibre, NR, NBR, Aramid fiber etc.

Temperature: 200-500 Celsius Degrees

Pressure: 2.0-5.0Mpa

Sizes:4500*1500*(0.4~5.0)mm,1500*1500*(0.4~5.0)mm,4100*1500*(0.4~5.0)mm,2000*1500*(0.4~5.0)mm,1350*1500*(0.4~5.0)mm, 3810*1270*(0.4~5.0)mm,1270*1270*(0.4~5.0)mm

Usual Color: Green, Blue, Black, Red

Packing: In wooden cases of about 100kgs , 200kgs ,500kgs ,1000kgs net each.




ITEM/TYPE 1920 1930 1940 1950
Density g/cm3 1.8±0.2 1.8±0.2 1.8±0.2 1.8±0.2
Compressibillity % 12±5 12±5 12±5 12±5
Recovery % ≥40 ≥50 ≥55 ≥60
Tensile Strength Mpa 6 8 10 12
Corrodent No No No No
s Relaxation % ≤45 ≤45 ≤40 ≤40
Immersed in 20# Oil,thickness increased % ≤25 ≤15 ≤15 ≤15
Max.temperature degrees celsius 200 300 400 500
Max.pressure Mpa 2 3 4 5
Main Materials NR,NBR,Sepiolite Fiber,Aramid Fiber etc.


Typical Application:


Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger, etc.
> Can be used in oil conditions.


Prime Features:

> 100% not including asbestos
> Wide range of temperatures


Competitive Advantage:


Compressed asbestos or asbestos free fiber jointing sheet is made from selected asbestos fiber or synthetic fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.




For the sealing of pipe flanges, valve pumps, marine pipeline connection etc., which use water, steam, hot oil, lye, chemical reagents and so on.
