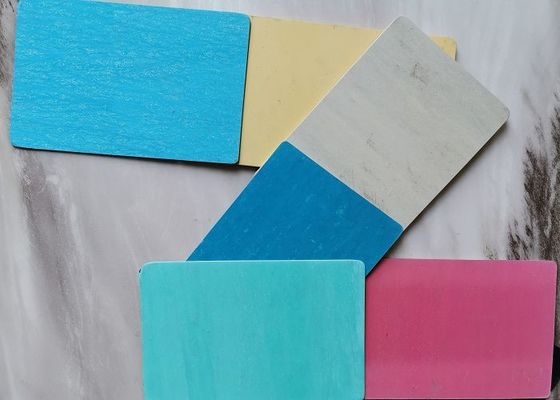

1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range

Certification
China Ningbo Xinyan Friction Materials Co., Ltd. certification
China Ningbo Xinyan Friction Materials Co., Ltd. certification
We cooperated with Xinyan since 2010,this is very good factory.Brake lining quality is good all the time and could be said “best cost performance”. Lily is very good at communication and supportive, very honest sales manager.

—— Mr Chay

We met Lily from friction material Fair in Shanghai. She is very professional with friction and sealing materials. We imported brake lining and gasket joint sheets from Xinyan factory for 4 years. A good and pleasant cooperation all the time. Very honest supplier, we trust them and believe you also could make beneficial cooperation with Xinyan comp

—— Mr Nelson

I'm Online Chat Now

1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range

1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range
1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range

Large Image :  1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range

Product Details:

Place of Origin: CHINA
Brand Name: DALU
Certification: ISO9001,CTI
Model Number: 1920,1930,1940

Payment & Shipping Terms:

Minimum Order Quantity: 0.5 ton
Price: negotiated
Packaging Details: Exporting Standard Pallet
Delivery Time: 5-8 weeks after down payment
Payment Terms: T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability: 20tons/month
Detailed Product Description
Name: Non Asbestos Gasket Sheet Feature: Wide Range Of Temperatures
Material: Sepiolite Fibre, NR, NBR, Aramid Fiber Etc. Pressure: 2.0-5.0Mpa
Temperature: 200-500 Celsius Degrees Usual Color: Green, Blue, Black, Red
High Light:

steam jointing sheet

,

high temperature gasket sheet

1.27mm * 1.27mm Non Asbestos Gasket Sheet Wide Temperatures Range



Description:



Non Asbestos Gasket Sheet is made from kevlar fiber, NBR, aramid fiber, filling materials and dye.Compressed and calendered under high temperature and pressure into a sheet form.It eliminates asbestos rubber sheet essentially and thoroughly.Can be used in oil conditions.



Quick Detail:



Name: Non Asbestos Gasket Sheet

Material: Sepiolite fibre, NR, NBR, Aramid fiber etc.

Temperature: 200-500 Celsius Degrees

Pressure: 2.0-5.0Mpa

Sizes:4500*1500*(0.4~5.0)mm,1500*1500*(0.4~5.0)mm,4100*1500*(0.4~5.0)mm,2000*1500*(0.4~5.0)mm,1350*1500*(0.4~5.0)mm, 3810*1270*(0.4~5.0)mm,1270*1270*(0.4~5.0)mm

Usual Color: Green, Blue, Black, Red

Packing: In wooden cases of about 100kgs , 200kgs ,500kgs ,1000kgs net each.



Specifications:



ITEM/TYPE 1920 1930 1940 1950
Density g/cm3 1.8±0.2 1.8±0.2 1.8±0.2 1.8±0.2
Compressibillity % 12±5 12±5 12±5 12±5
Recovery % ≥40 ≥50 ≥55 ≥60
Tensile Strength Mpa 6 8 10 12
Corrodent No No No No
Stress Relaxation % ≤45 ≤45 ≤40 ≤40
Immersed in 20# Oil,thickness increased % ≤25 ≤15 ≤15 ≤15
Max.temperature degrees celsius 200 300 400 500
Max.pressure Mpa 2 3 4 5
Main Materials NR,NBR,Sepiolite Fiber,Aramid Fiber etc.



Typical Application:



Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger, etc.
> Can be used in oil conditions.



Prime Features:


> 100% not including asbestos
> Wide range of temperatures



Competitive Advantage:



Compressed asbestos or asbestos free fiber jointing sheet is made from selected asbestos fiber or synthetic fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.



Applications:



For the sealing of pipe flanges, valve pumps, marine pipeline connection etc., which use water, steam, hot oil, lye, chemical reagents and so on.
