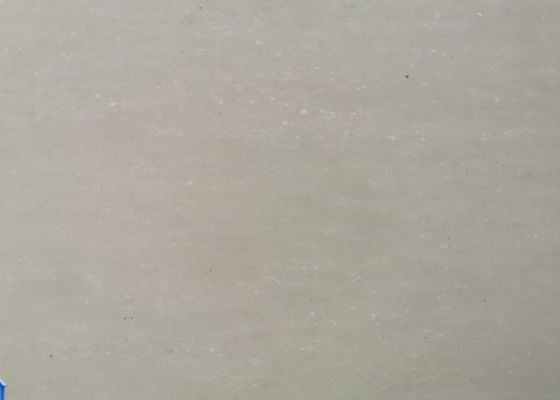

Heat Insulation Non Asbestos Jointing Sheet , Water / Steam Jointing Sheet
|Place of Origin||CHINA|
|Minimum Order Quantity||0.5 Ton|
|Packaging Details||Exporting standard pallet|
|Delivery Time||5-8 weeks after down payment|
|Payment Terms||T/T, 30% Down Payment before production, 70% Balance paid before shipment|
|Supply Ability||100 tons|
|Name||Steam Jointing Sheet||Feature||Heat Insulation|
|Material||Sepiolite Fibre, NR, NBR, Aramid Fiber Etc.||Temperature||200-500 Celsius Degrees|
asbestos free sheet,
asbestos free material
Red Color Non Asbestos Jointing Sheet , Water / Steam Jointing Sheet
Sealing products are mainly applied in shipbuilding, aviation, petroleum, chemical industry, foodstuff and medicine with the good merits of heat preservation, heat insulation, sealing and insulation.
|Tensile Strength Mpa||6||8||10||12|
|s Relaxation %||≤45||≤45||≤40||≤40|
|Immersed in 20# Oil,thickness increased %||≤25||≤15||≤15||≤15|
|Max.temperature degrees celsius||200||300||400||500|
|Main Materials||NR,NBR,Sepiolite Fiber,Aramid Fiber etc.|
Name: Non-asbestos Rubber Joint Sheet/Oil-resistant Sheet
Material: Sepiolite fibre, NR, NBR, Aramid fiber etc.
Application: For the sealing of pipe flanges, valve pumps, marine pipeline connection etc., which use water, steam, hot oil, lye, chemical reagents and so on.
Temperature: 200-500 Celsius Degrees
Sizes: 4500*1500*(0.4~5.0)mm,1500*1500*(0.4~5.0)mm,4100*1500*(0.4~5.0)mm,2000*1500*(0.4~5.0)mm,1350*1500*(0.4~5.0)mm, 3810*1270*(0.4~5.0)mm,1270*1270*(0.4~5.0)mm
Usual Color: Green, Blue, Black, Red
Packing: In wooden cases of about 100kgs , 200kgs ,500kgs ,1000kgs net each.
Different size and color are both can be produced as customers’ special request.
> Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger, etc.
> Can be used in oil conditions.
> 100% not including asbestos
> Wide range of temperatures
For the sealing of pipe flanges, valve pumps, marine pipeline connection etc., which use water, steam, hot oil, lye, chemical reagents and so on.
Compressed asbestos or asbestos free fiber jointing sheet is made from selected asbestos fiber or synthetic fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
