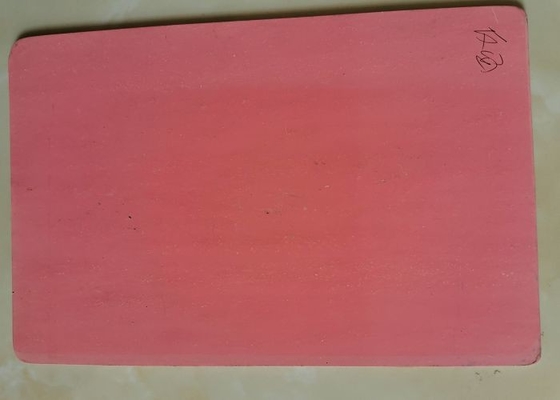

Red Color Air Water Steam Jointing Sheet For Pipeline Connection Sealing
|Place of Origin||CHINA|
|Minimum Order Quantity||0.5 Ton|
|Packaging Details||Exporting Standard Pallet|
|Delivery Time||5-8 weeks after down payment|
|Payment Terms||T/T, 30% Down Payment before production, 70% Balance paid before shipment|
|Supply Ability||100 tons/month|
|Name||Steam Jointing Sheet||Feature||Heat Resisting|
|Temperature||150-450 Celsius Degrees||Pressure||1.5-4.5Mpa|
|Color||Red, Brown, Black||Size||Optional|
compressed asbestos fibre jointing sheet,
asbestos gasket sheet
Heat Resisting Air Water Steam Jointing Sheet For Pipeline Connection Sealing
Usual Color: Red, Brown, Black
Name: Asbestos Rubber Joint Sheet
Material: Natural Rubber, Asbestos Fiber etc.
Application: For the sealing of all chemical pipes, flange, pumps connection which use water, stream, air, ammonia, gas, lye etc. as the medium.
Temperature: 150-450 Celsius Degrees
Sizes:4500*1500*(0.4~5.0)mm,1500*1500*(0.4~5.0)mm,4100*1500*(0.4~5.0)mm, 2000*1500*(0.4~5.0)mm, 1350*1500*(0.4~5.0)mm, 3810*1270*(0.4~5.0)mm,1270*1270*(0.4~5.0)mm
Material: Made of asbestos fiber, rubber and heat-resisting packing material, compressing it to thick paper.
Uses: Used for the equipment in water, steam, etc. And used as sealing material in the joints of pipeline
1. XB150 Asbestos Rubber Sheet
2. XB250 Asbestos Rubber Sheet
3. XB350 Asbestos Rubber Sheet
4. Asbestos Rubber Sheet with Wire Mesh
5. Oil-resistance Asbestos Rubber Sheet
6. Asbestos Rubber Sheet with Wire Mesh covered graphite
For the sealing of pipe flanges, valve pumps, marine pipeline connection etc., which use water, steam, hot oil, lye, chemical reagents and so on.
|ITEM / TYPE||XB450||XB350||XB300||XB200||XB150|
|Tensile Strength Mpa||19||11||9||7||5|
|Stress Relaxation %||≤40||≤45||≤50||≤50||≤50|
|Max. temperature ℃||450||350||300||200||150|
|Main Materials||NB, Asbestos fiber etc.|
|Scope of application||For the sealing of all chemical pipes, flange, pumps connection which use water, stream, air, ammonia, gas,lye ect.as the medium.|
