Woven Brake Band Lining Material For Marine Crane

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Woven Material Brake Band Lining In Roll For Crane Ship Boat Brake Bands Made For Marine Product Color Brown
Application Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Material Brake Band Lining In Roll For Crane Ship Boat Brake Bands Made For Marine Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Woven Brake Band Lining Material

,

Marine Crane Brake Band Lining Material

,

Woven Brake Band Lining

Leave a Message
Product Description

Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake Bands Made for marine

Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

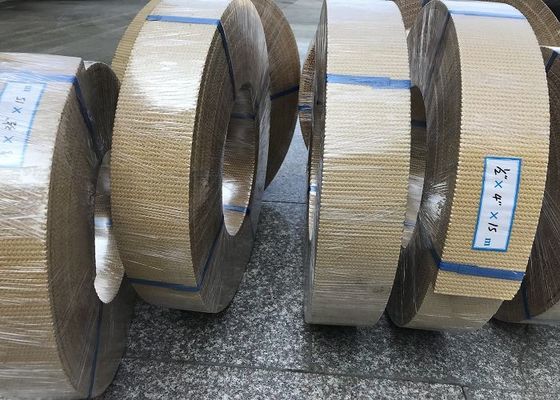

Woven Brake Band Lining Material For Marine Crane 0Woven Brake Band Lining Material For Marine Crane 1Woven Brake Band Lining Material For Marine Crane 2




Quick Detail:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake Bands Made for marine


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake Bands Made for marine
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.


 Woven Brake Band Lining Material For Marine Crane 3

Specifications:
Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake Bands Made for marine

Model: BXS-Y Non-asbestos Woven Brake Linging
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Cashew Nut Oil resin.
Working Conditions: 200℃,Static Pressure: 4.0Mpa.
Applied field: Widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m
Color: Brown




Competitive Advantage:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake Bands Made for marine

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
