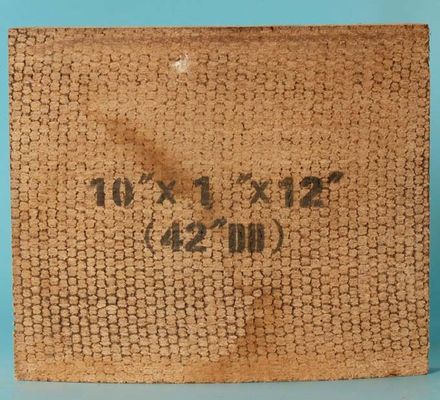

Oil Well Drilling Machine Non Asbestos Woven Brake Blocks

  • Oil Well Drilling Machine Non Asbestos Woven Brake Blocks
  • Oil Well Drilling Machine Non Asbestos Woven Brake Blocks
  • Oil Well Drilling Machine Non Asbestos Woven Brake Blocks
  • Oil Well Drilling Machine Non Asbestos Woven Brake Blocks
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines Product Color Brown
Application Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Woven Brake Blocks

,

Non Asbestos Brake Blocks

,

Drilling Machine Woven Brake Linings
Leave a Message
Product Description

Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines



Ningbo Xinyan Friction Materials Co., Ltd. is a professional manufacturer of non asbestos woven brake lining. Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.

Oil Well Drilling Machine Non Asbestos Woven Brake Blocks 0Oil Well Drilling Machine Non Asbestos Woven Brake Blocks 1


Oil Well Drilling Machine Non Asbestos Woven Brake Blocks 2




Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

 Oil Well Drilling Machine Non Asbestos Woven Brake Blocks 3Oil Well Drilling Machine Non Asbestos Woven Brake Blocks 4


Specifications:Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines

Model: BXS-Y Non-asbestos Woven Brake Linging
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Cashew Nut Oil resin.
Working Conditions: 200℃,Static Pressure: 4.0Mpa.
Applied field: Widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m
Color: Brown




Competitive Advantage:Oil Well Drilling Road Brake Blocks Woven Brake Linings For Drilling Machines



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
