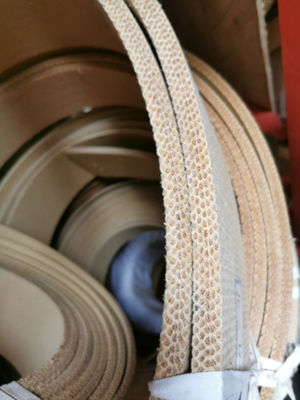

Non Asbestos Aramid Fiber Brake Lining Roll For Braking Deceleration

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Model Number Non asbestos brake lining
Minimum Order Quantity 0.5 Ton
Price Negotiated
Packaging Details Exporting Standard Pallet
Delivery Time 5-8 weeks after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20 tons/month
Product Details
Name Non-asbestos Industrial Brake Lining Roll For Ship Anchor Windlass Winch Brake Band Thickness Non Asbestos Brake Lining Thickness(5~30)* Width(≤500)mm
Material Viscose Fiber, Aramid Fiber, Glass Fiber, 2 Brass Wires, Melamine Resin. Use Widely Used For Braking Deceleration And Transmitting Power Of Big Power Machineries.
Certification ISO9001,CTI
High Light

Aramid Fiber Brake Lining Roll

,

Viscose Fiber Woven Brake Lining Roll

,

Braking Deceleration Brake Lining Roll

Leave a Message
Product Description

Non-Asbestos Industrial Brake Lining Roll For Ship Anchor Windlass Winch Brake Band



Quick Detail:



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow



Description:



Non-asbestos Industrial Brake Lining Roll for ship anchor windlass winch brake band



Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Applications:



Non-asbestos Industrial Brake Lining Roll for ship anchor windlass winch brake band



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.



Specifications:

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Competitive Advantage:



Non-asbestos Industrial Brake Lining Roll for ship anchor windlass winch brake band



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
