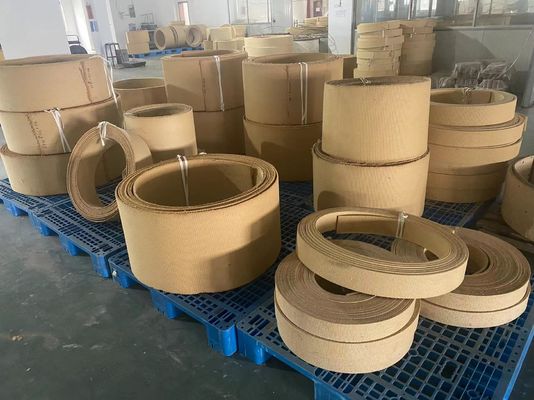

Melamine Resin Crane Elevator Brake Lining Asbestos Free
|Product Name||Crane Elevator Brake Lining Non Asbestos Woven Brake Lining Lining Asbestos Free||Product Color||Brown|
|Application||It's Widely Used In Decelerating And Braking Of Engineer Machines, Industry Machine And Mining Machines, Such As Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Etc.||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Non-asbestos Woven Brake Lining Roll With Brass Wire Ship Anchor Brake Lining||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
Crane Brake Lining Non Asbestos,
Crane Elevator Woven Brake Lining,
Crane Brake Lining Asbestos Free
Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.
Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials.
Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
