Non Asbestos Woven Brake Band For Ship Anchor Windlass Heavy Machine
|Product Name||Non-asbestos Woven Brake Band Ship Anchor Windlass Brake Heavy Machine Brake Linging||Product Color||Brown|
|Application||It's Widely Used In Decelerating And Braking Of Engineer Machines, Industry Machine And Mining Machines, Such As Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Etc.||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Non-asbestos Woven Brake Band Ship Anchor Windlass Brake Heavy Machine Brake Linging||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
Non Asbestos Brake Band,
Heavy Machine Brake Lining,
Melamine Resin Brake Band
Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.
Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials. We have the modern production line, with the best and professional machine, which can control the whole quality. the good density can make the brake lining much more strenght and decease the changing rate.
Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc. It is characterized with high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc.

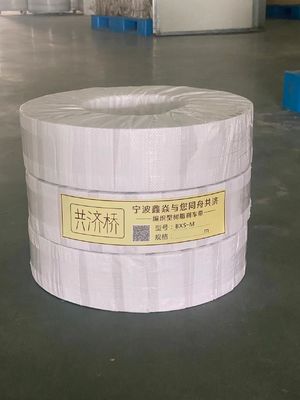

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
