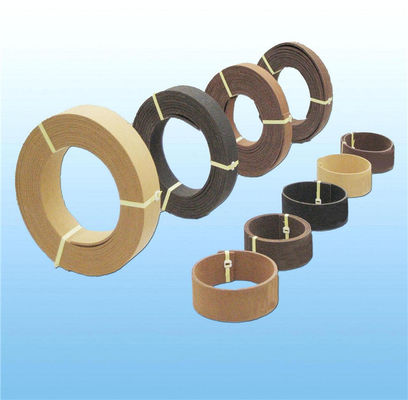

Multifunctional Non Asbestos Brake Lining Material High Temperature Resistant

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Model Number BXS-M
Minimum Order Quantity 0.5 ton
Price Negotiated
Packaging Details Exporting stardard pallet
Delivery Time About 30 working days after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20 tons /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Non Asbestos Brake Lining Material Applied Field Big Power Machineries
Material Viscose Fiber, Aramid Fiber, Glass Fiber, 2 Brass Wires, Melamine Resin Working Conditions 250℃
Static Pressure 4.0Mpa Specification T(5~30)x W(≤500)mm
Available Length 10m,15m,20m Color Brown Yellow Black
High Light

asbestos free brake lining


brake lining non asbestos

Leave a Message
Product Description

Multifunctional Non Asbestos Brake Lining Material High Temperature Resistant


Our main products:


Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.




Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7




Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.


Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance,  long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.




It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.


Competitive Advantage:


We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.


We produce brake lining raw materials by ourselves, such as non-asbestos yarns and weave it into non-asbestos brake lining. So that we control the whole quality by ourselves. We promise you the best performance products all the time.
