Corrosion Resistant Non Asbestos Brake Lining , Woven Brake Lining Roll

Corrosion Resistant Non Asbestos Brake Lining , Woven Brake Lining Roll
Corrosion Resistant Non Asbestos Brake Lining , Woven Brake Lining Roll

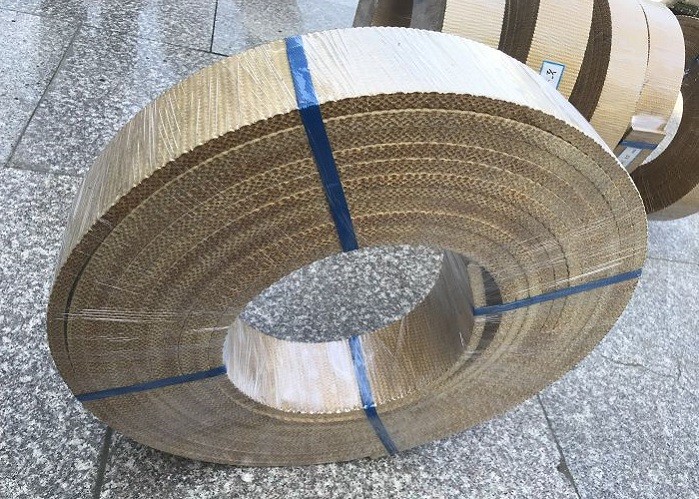

Large Image :  Corrosion Resistant Non Asbestos Brake Lining , Woven Brake Lining Roll

Product Details:

Place of Origin: China
Brand Name: DALU
Certification: ISO9001,CTI
Model Number: BXS-L

Payment & Shipping Terms:

Minimum Order Quantity: 0.5 ton
Price: Negotiated
Packaging Details: exporting standard pallet
Delivery Time: About 30 working days after down payment
Payment Terms: T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability: 20 tons /month
Detailed Product Description
Specification: T(5~30)x W(≤500)mm Available Length: 10m,15m,20m
Material: Viscose Fiber, Aramid Fiber, Glass Fiber, 2 Brass Wires, Asphalt Resin Applied Field: Braking Deceleration And Transmitting Power Of Farm / Engineering Machinery
Working Conditions: 100℃~150℃ Model: BXS-L
Static Pressure: 4.0Mpa Color: Brown
High Light:

brake lining non asbestos

,

windlass brake lining material

Corrosion Resistant Non Asbestos Brake Lining , Woven Brake Lining Roll



Specifications:



Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.30~0.60 ≤1.5 x 10-7
150℃ 0.25~0.60 ≤1.5 x 10-7



Competitive Advantage:



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



We produce brake lining raw materials by ourselves, such as non-asbestos yarns and weave it into non-asbestos brake lining. So that we control the whole quality by ourselves. We promise you the best performance products all the time.



Description:



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Applications:



It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.
