Non Asbestos Woven Brake Lining Roll With Resin ship achor brake lining

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Minimum Order Quantity 0.5 TON
Price Negotiated
Packaging Details Exporting standard pallet
Delivery Time 5-8 weeks after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Woven Brake Lining Roll With Resin Ship Achor Brake Lining Packing Long Service Life
Thickness 5-30mm Width <500mm
Strength 10m,15m,20m/ Roll Max Temperature 200 Celsius Degrees
High Light

alkali resistant glass fiber tape

,

high temperature fiberglass woven tape

Leave a Message
Product Description

Non Asbestos Woven Brake Lining Roll With Resin ship achor brake lining

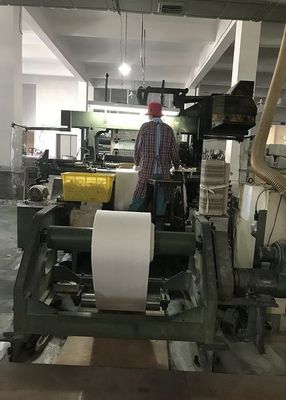

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fibre, Aramid fibre ect. All yarns are woven by advanced loom machinery&equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship. Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



BXS-Y

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35–0.65 ≤0.7 x 10-7
150℃ 0.35–0.65 ≤1.1 x 10-7
200℃ 0.30–0.60 ≤1.3 x 10-7













Model: BXS-Y Non-asbestos Woven Brake Linging

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Cashew Nut Oil resin.

Working Conditions: 200℃,Static Pressure: 4.0Mpa.

Applied field:Widely used for braking deceleration and transmitting power of big power machineries,such as ship winch, dock crane,drilling machineries, lifting machine,building machinery etc.

Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m

Color: Brown
