Flexible Woven Brake Lining Roll , Asbestos Brake Lining Wear Resistant

Place of Origin CHINA
Brand Name DALU
Certification ISO9001,CTI
Model Number CAS-L
Minimum Order Quantity 0.5 ton
Price negotiated
Packaging Details Exporting standard pallet
Delivery Time About 30 working days after down payment
Payment Terms T/T, 30% Down Payment before production, 70% Balance paid before shipment
Supply Ability 20 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Yellow Product Name Woven Brake Lining Roll
Feature Wear Resistant Material Asbestos Fiber, 2 Brass Wires, Glass Fiber, Asphalt Resin
Working Condition 100℃~150℃ Specification T(5~30)x W(≤500)mm
Available Length 10m,15m,20m Packing Exporting Standard Pallet
High Light

winch brake lining

,

anchor windlass brake lining

Leave a Message
Product Description

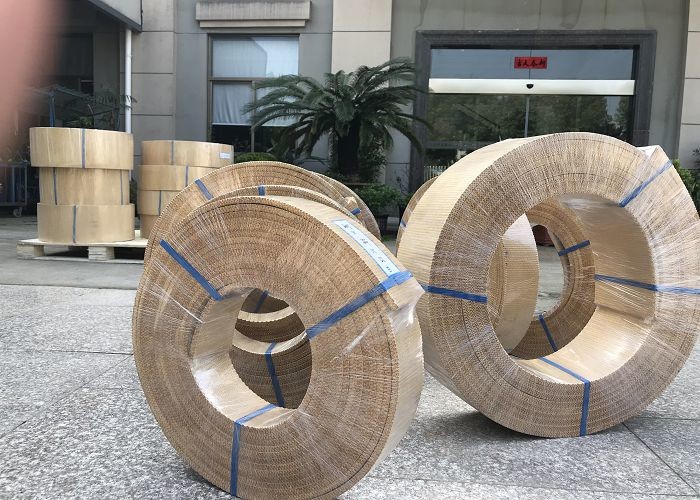

Flexible Woven Brake Lining Roll , Asbestos Brake Lining Wear Resistant



Applications:



Asbestos Woven Brake Lining Roll is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.



Specifications:



Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.30~0.60 ≤1.5 x 10-7
150℃ 0.25~0.60 ≤1.5 x 10-7



Competitive Advantage:



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Description:



Asbestos Woven Brake Lining Roll selects high quality asbestos yarns which contains two brass wires woven by advanced loom machinery & equipment then impregnate into specially formulated polymer resin, and through high temperature, low temperature etc. processing workmanship. The product owns high performance of wear resistance, low wear rate, high tensile strength, high temperature resistance, long service life and impact resistance etc.



Quick Detail:



Model: CAS-L Asbestos Woven Brake Lining

Material: Asbestos fiber, 2 brass wires, glass fiber, Asphalt resin.

Working condition: 100℃~150℃,Static Pressure: 4.0Mpa.

Applied field: Widely used for braking deceleration and transmitting power of farm machinery and engineering machinery.

Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m

Color: Yellow
