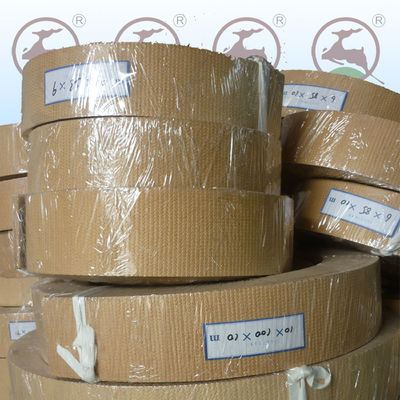

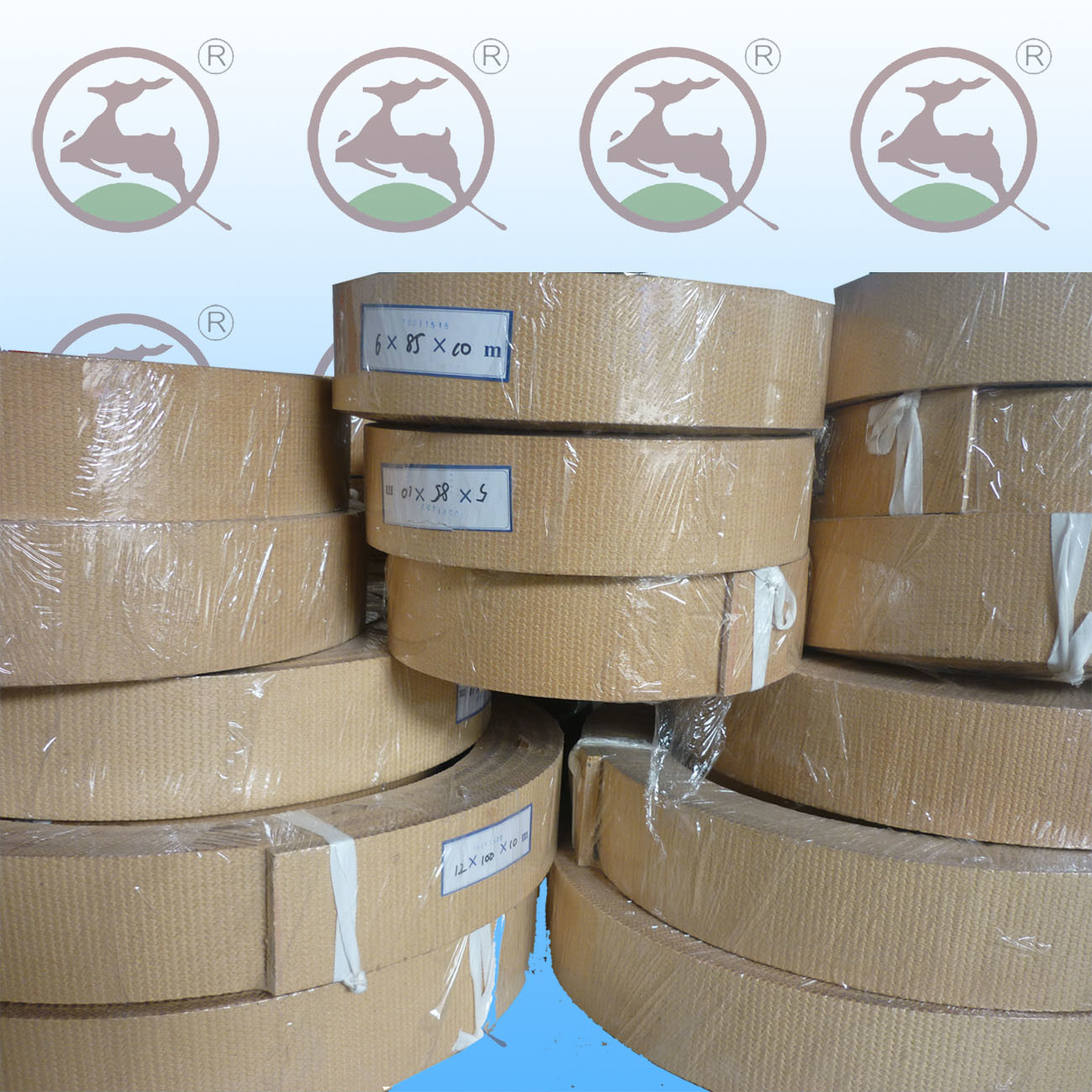

Drilling Machine flexible Asbestos Free Brake Lining
|Product Name||Woven Brake Lining With Resin||Product Color||Yellow|
|Application||Anchor, Crane, Drilling Machine||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
Flexible woven brake lining roll,
Drilling Machine non asbestos brake lining
Non-asbestos Woven Brake Lining Drilling Machine Asbestos-free brake lining rolls
Description and Technical Data
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
Non asbestos Woven Brake Lining BXS-M
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
