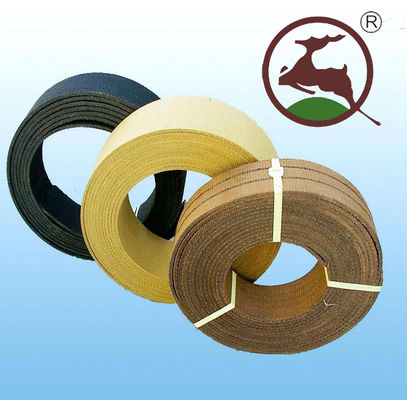

Anchor Resin 20m Non Asbestos Woven Brake Lining
|Product Name||Woven Brake Lining With Resin||Product Color||Yellow|
|Application||Anchor, Crane, Drilling Machine||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
20m asbestos free brake lining,
Resin brake lining non asbestos
Non-asbestos Woven Brake Lining Brake lining Rolls resin brake lining
Description and Technical Data
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
Non asbestos Woven Brake Lining BXS-M
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
