200 Degree Anchor Windlass Woven Brake Lining Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-Y
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Woven Brake Lining With Resin Product Color Brown
Application Anchor Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Place Of Origin Ningbo China
High Light

anchor windlass woven brake lining

,

woven brake lining roll

,

200 degree Woven Brake Lining

Leave a Message
Product Description

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining





woven brake lining roll is made from viscose fiber, brass and melamine resin. woven brake lining roll is high flexibility, good wear rate, stable friction coefficient and without any environment pollution.





Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

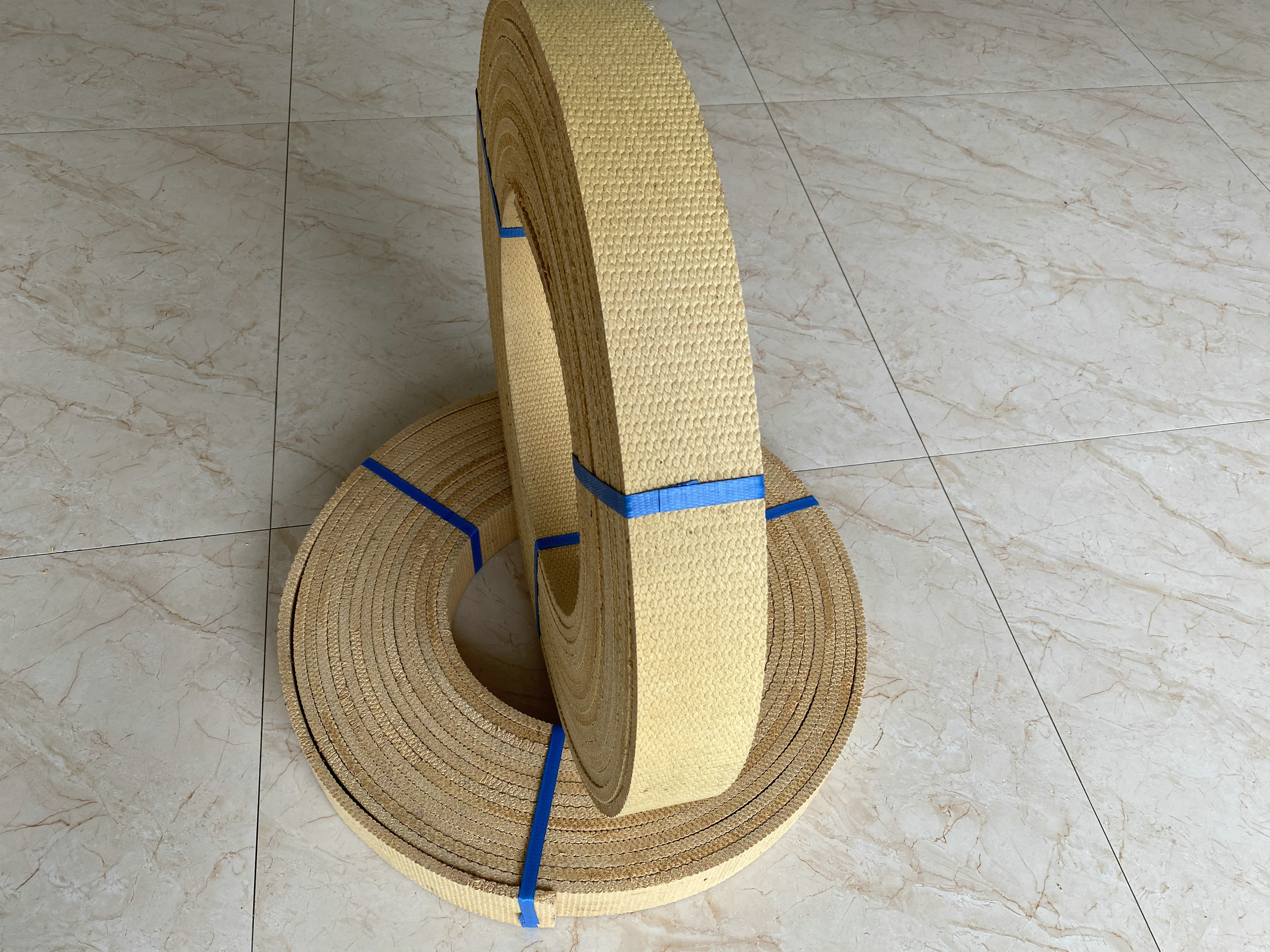

200 Degree Anchor Windlass Woven Brake Lining Roll 0

200 Degree Anchor Windlass Woven Brake Lining Roll 1



Quick Detail:



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m







Specifications:



Temperature

Coefficient of friction(μ)

Wear rate(v)(cm³/N.m)

100℃

0.35~0.65

≤0.7 x 10-7

150℃

0.35~0.65

≤1.1 x 10-7

200℃

0.30~0.60

≤1.5 x 10-7

250℃

0.25~0.60

≤2.5 x 10-7
