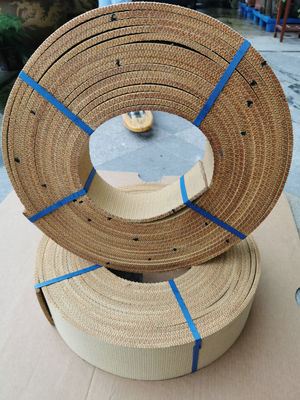

250℃ 10m/Roll Non Asbestos Woven Brake Lining
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-Y |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Woven Brake Lining With Resin | Product Color | Brown |
|---|---|---|---|
| Application | Anchor | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| High Light | 10m/Roll Non Asbestos Woven Brake Lining,250℃ Non Asbestos Woven Brake Lining |
||
Product Description
Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll
woven brake lining roll is made from viscose fiber, brass and melamine resin. woven brake lining roll is high flexibility, good wear rate, stable friction coefficient and without any environment pollution.
Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
Quick Detail:
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Applications:
It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.
Specifications:
|
Temperature |
Coefficient of friction(μ) |
Wear rate(v)(cm³/N.m) |
|
100℃ |
0.35~0.65 |
≤0.7 x 10-7 |
|
150℃ |
0.35~0.65 |
≤1.1 x 10-7 |
|
200℃ |
0.30~0.60 |
≤1.5 x 10-7 |
|
250℃ |
0.25~0.60 |
≤2.5 x 10-7 |
Competitive Advantage:
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
