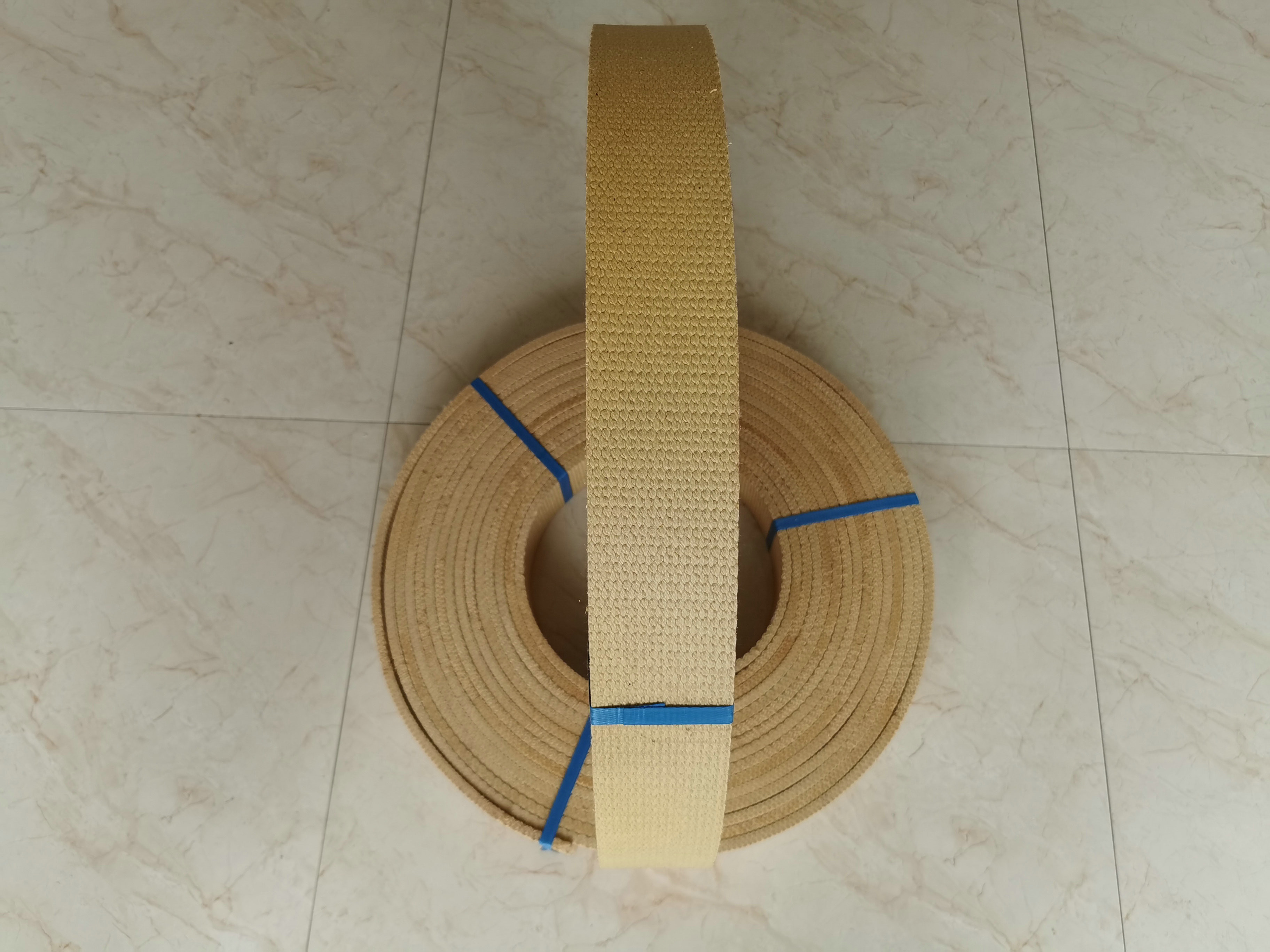

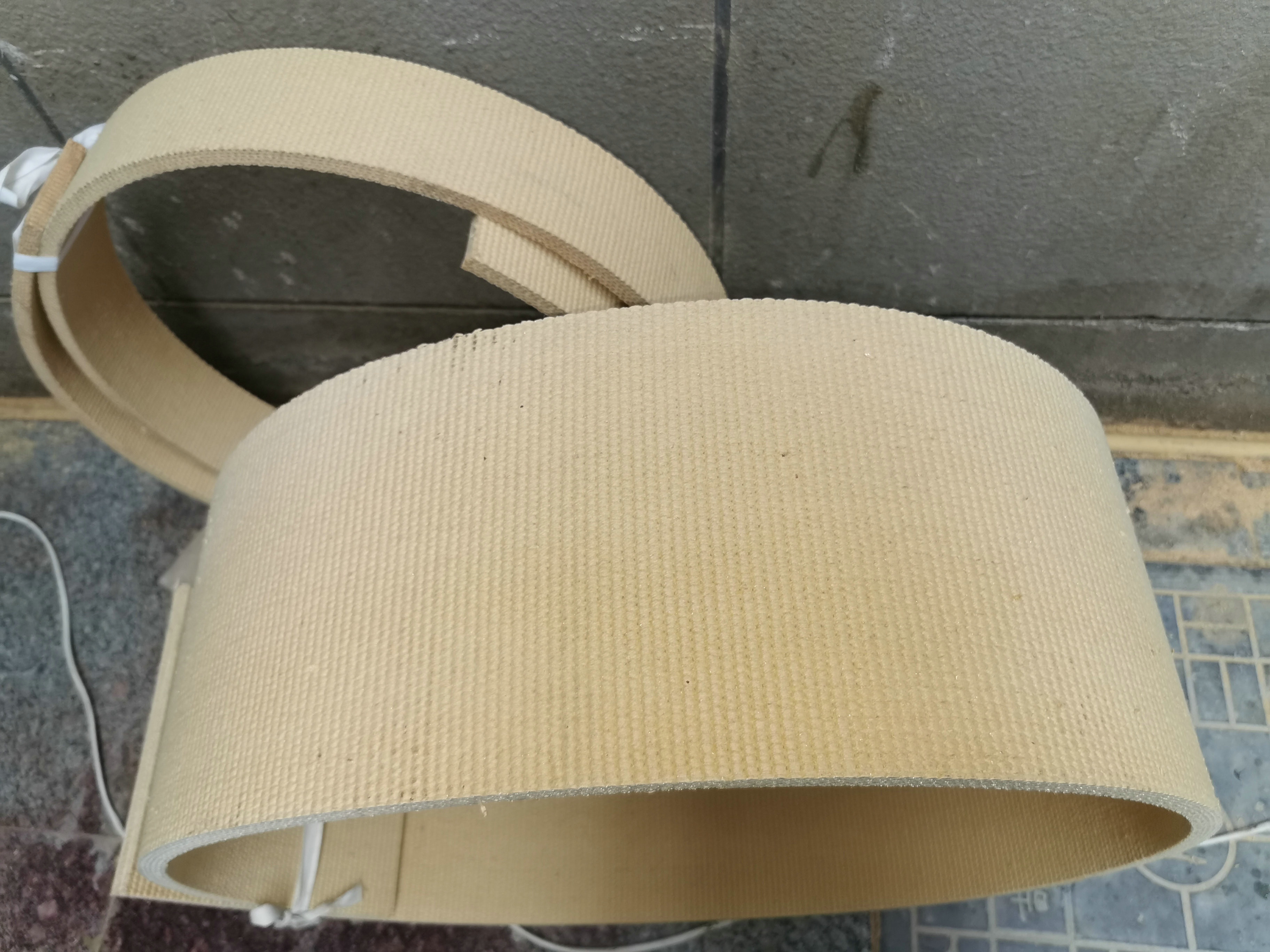

Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining

  • Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining
  • Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining
  • Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining
  • Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Woven Resin Anchor Windlass Brake Lining Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Resin Anchor Windlass Brake Lining

,

10m/Roll Windlass Brake Lining

,

Asbestos Free Windlass Brake Lining
Leave a Message
Product Description

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining



Non asbestos Woven Brake Lining ship anchor brake lining, winch brake lining,windlass brake lining lining,asbestos free



Description:



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Woven Brake Linings are widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.







Specifications:



Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7




Supply Ability
Supply Ability:20 Tons
Packaging Details:Standard Packing For Shipment
Port:Shanghai ro Ningbo
Lead Time :30days After down Payment





1. Hot- Resistence
2. Long-Time Using
3. High Quality
4,Wear-Resistant ,Low-Noise,Less-Dust
5,Safe And Reliable.
6,Competitive Pricing And Quality Assured Products
7,Using Life Of Brake Lining :40000km



Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining 0Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining 1



Brown Ship 10m/Roll Woven Resin Anchor Windlass Brake Lining 2



Quick Detail:



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m







Competitive Advantage:

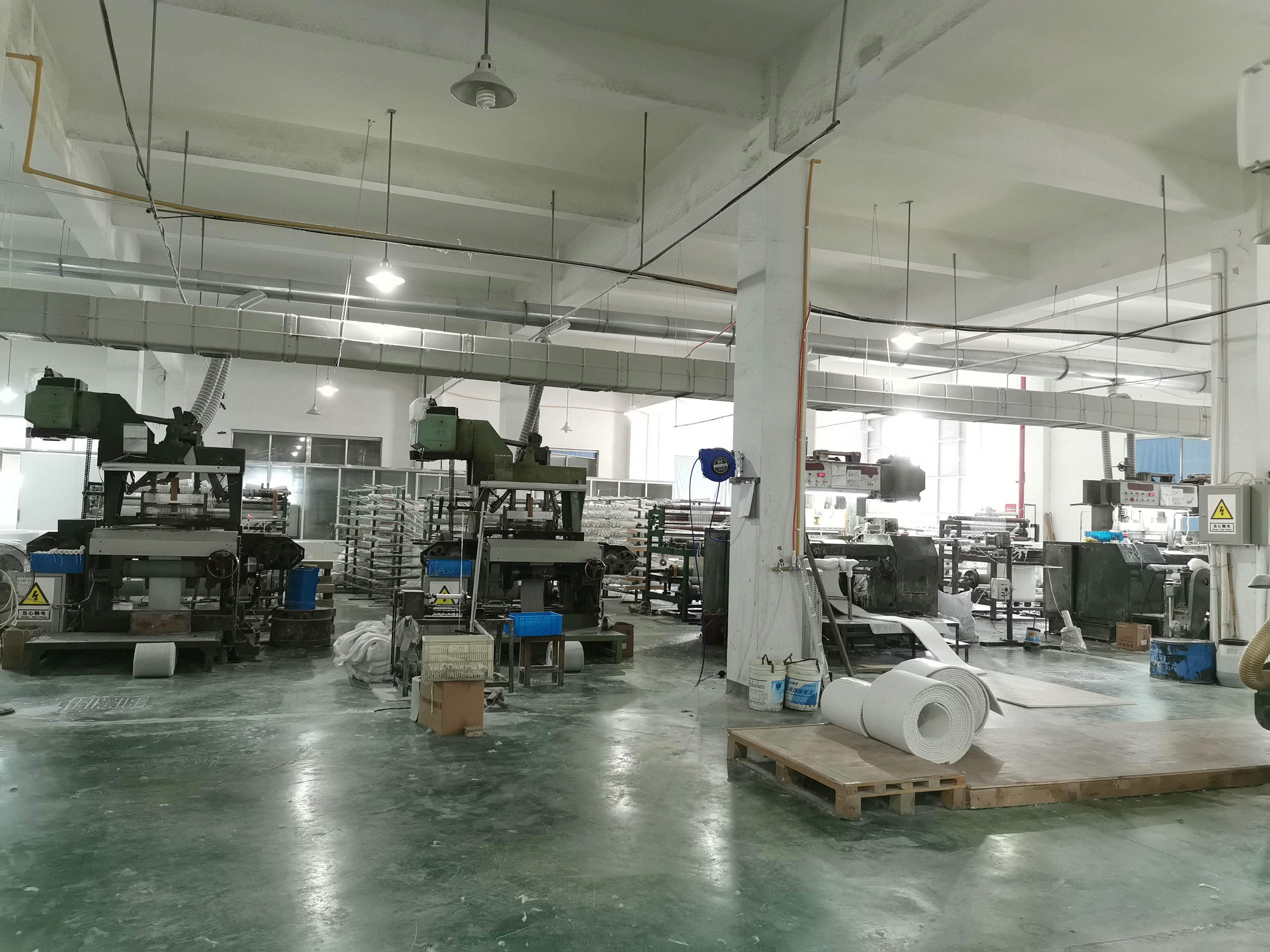

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
