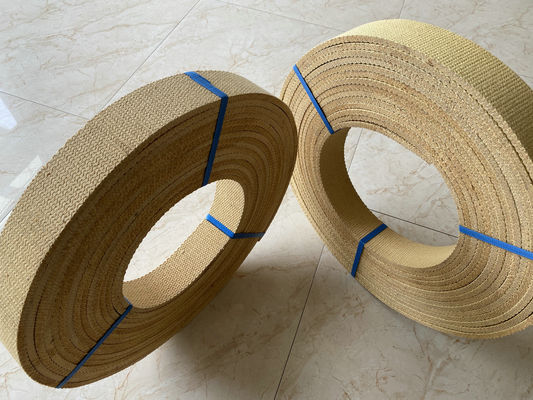

Construction Sugar Mill Windlass Asbestos Free Brake Lining

Construction Sugar Mill Windlass Asbestos Free Brake Lining
Construction Sugar Mill Windlass Asbestos Free Brake Lining

Large Image :  Construction Sugar Mill Windlass Asbestos Free Brake Lining

Product Details:

Place of Origin: CHINA
Brand Name: DALU
Certification: GB/T 19001-2016/ISO 9001:2015
Model Number: BXS-M

Payment & Shipping Terms:

Minimum Order Quantity: 0.5 Tons
Price: Negotiable
Packaging Details: exporting wooden case, pallet, woven bags
Delivery Time: 6 weeks after down payment
Payment Terms: T/T
Supply Ability: 20 Tons
Detailed Product Description
Product Name: Windlass Sugar Mill Asbestos Free Brake Lining For Construction Machinery Product Color: Yellow
Application: Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size: 10, 15, 20 Meters/roll
Material: Brass Wire, Resin, Viscose, Type: BXS-M
Woven: Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin: Melamine Resin
Main Raw Material: Non-asbestos Yarns
High Light:

Windlass Asbestos Free Brake Lining

,

Sugar Mill Brake Lining

,

Melamine Resin Brake Lining

Windlass Sugar Mill Asbestos Free Brake Lining For Construction Machinery



Description:



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.





Specifications:Windlass Sugar Mill Asbestos Free Brake Lining For Construction Machinery

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Construction Sugar Mill Windlass Asbestos Free Brake Lining 0

















Quick Detail:Windlass Sugar Mill Asbestos Free Brake Lining For Construction Machinery



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow



Construction Sugar Mill Windlass Asbestos Free Brake Lining 1



Competitive Advantage:Windlass Sugar Mill Asbestos Free Brake Lining For Construction Machinery

We produce non-asbestos yarns by ourself and weave yarns to non-asbestos brake lining. We can control the whole quality from raw materials to finished products. You don't need feel worry about the quality. I can say that we have the best cost performance in Chinese market.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Construction Sugar Mill Windlass Asbestos Free Brake Lining 2



Construction Sugar Mill Windlass Asbestos Free Brake Lining 3
