Non Asbestos Yellow Friction Light Truck Woven Brake Lining

Certification
China Ningbo Xinyan Friction Materials Co., Ltd. certification
China Ningbo Xinyan Friction Materials Co., Ltd. certification
We cooperated with Xinyan since 2010,this is very good factory.Brake lining quality is good all the time and could be said “best cost performance”. Lily is very good at communication and supportive, very honest sales manager.

—— Mr Chay

We met Lily from friction material Fair in Shanghai. She is very professional with friction and sealing materials. We imported brake lining and gasket joint sheets from Xinyan factory for 4 years. A good and pleasant cooperation all the time. Very honest supplier, we trust them and believe you also could make beneficial cooperation with Xinyan comp

—— Mr Nelson

I'm Online Chat Now

Non Asbestos Yellow Friction Light Truck Woven Brake Lining

Non Asbestos Yellow Friction Light Truck Woven Brake Lining
Non Asbestos Yellow Friction Light Truck Woven Brake Lining

Large Image :  Non Asbestos Yellow Friction Light Truck Woven Brake Lining

Product Details:

Place of Origin: CHINA
Brand Name: DALU
Certification: GB/T 19001-2016/ISO 9001:2015
Model Number: BXS-M

Payment & Shipping Terms:

Minimum Order Quantity: 0.5 Tons
Price: Negotiable
Packaging Details: exporting wooden case, pallet, woven bags
Delivery Time: 6 weeks after down payment
Payment Terms: T/T
Supply Ability: 20 Tons
Detailed Product Description
Product Name: Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining Product Color: Yellow
Application: Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size: 10, 15, 20 Meters/roll
Material: Brass Wire, Resin, Viscose, Type: BXS-M
Woven: Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin: Melamine Resin
Main Raw Material: Non-asbestos Yarns
High Light:

Light Truck Woven Brake Lining

,

Yellow Friction Woven Brake Lining

,

Wear Resistance Woven Brake Lining

Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining



Description:



Brake Lining Rolls own high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Woven Brake Lining Roll is widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck...





Materials:Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining

Brass wire, glass fiber, viscose fiber, resin and friction materials, etc. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.



Characteristics:

Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining

1. Good flexibility,

2. Excellent oil resistance and water resistance,

3. High tenacity, shock resisting, heat resisting,

4. Good duality and anastomosis, agile brake.





Specifications:Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7











Non Asbestos Yellow Friction Light Truck Woven Brake Lining 0









Quick Detail:Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow







Competitive Advantage:Friction Woven Brake Lining Material / Light Truck Brake Lining Parts,Non-asbestos Woven Brake Lining

We produce non-asbestos yarns by ourself and weave yarns to non-asbestos brake lining. We can control the whole quality from raw materials to finished products. You don't need feel worry about the quality. I can say that we have the best cost performance in Chinese market.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

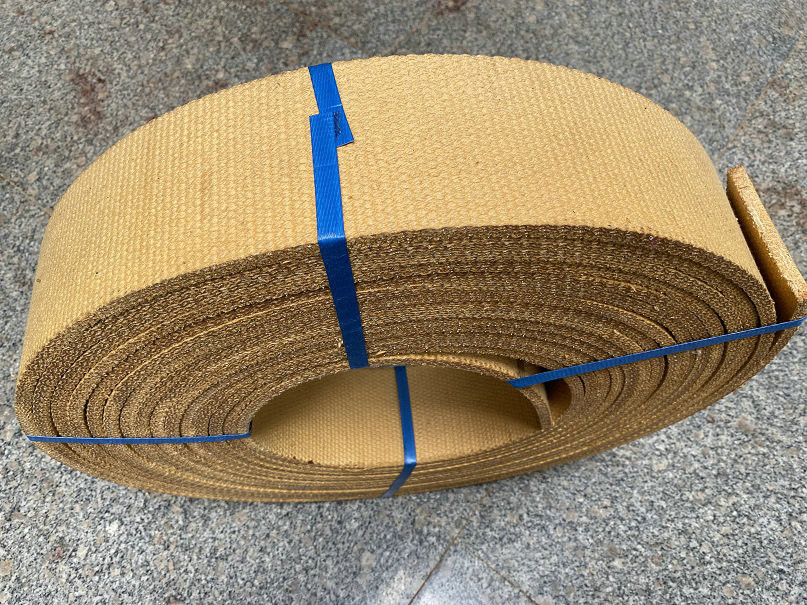

Non Asbestos Yellow Friction Light Truck Woven Brake Lining 1Non Asbestos Yellow Friction Light Truck Woven Brake Lining 2Non Asbestos Yellow Friction Light Truck Woven Brake Lining 3
