Dock Crane Windlass Woven Asbestos Free Brake Lining

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non-asbestos Woven Brake Lining Dock Crane Braking Deceleration Transmitting Power Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Woven Asbestos Free Brake Lining

,

Windlass Asbestos Free Brake Lining

,

Dock Crane Brake Lining

Leave a Message
Product Description

Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power



Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian,Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment,Ningbo Xinyan is capable to offer the compared testing service and customized friction products.







Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could  wechat/whatsapp me at (86) 13771895935 to get more informations.

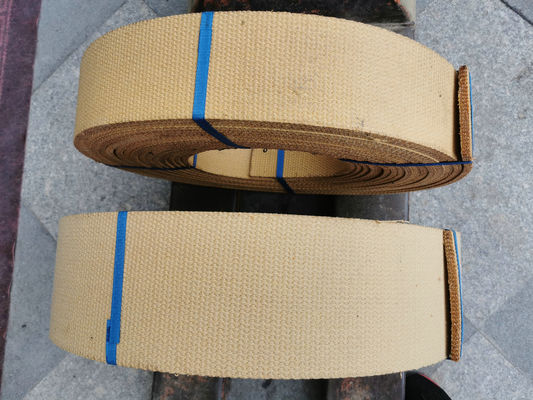

Dock Crane Windlass Woven Asbestos Free Brake Lining 0



Dock Crane Windlass Woven Asbestos Free Brake Lining 1







Quick Detail:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power



Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow



Dock Crane Windlass Woven Asbestos Free Brake Lining 2



Description:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.





Specifications:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power

Temperature

Coefficient of friction(μ)

Wear rate(v)(cm³/N.m)

100℃

0.35~0.65

≤0.7 x 10-7

150℃

0.35~0.65

≤1.1 x 10-7

200℃

0.30~0.60

≤1.5 x 10-7

250℃

0.25~0.60

≤2.5 x 10-7



Dock Crane Windlass Woven Asbestos Free Brake Lining 3







Competitive Advantage:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
