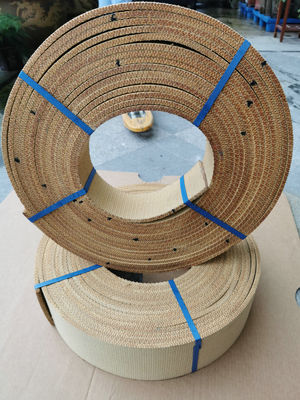

Asbestos Free Ship Anchor Melamine Resin Winch Brake Lining
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-M |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Woven Brake Lining Asbestos Free Ship Anchor Brake Windlass Melamine Resin Winch Brake | Product Color | Brown |
|---|---|---|---|
| Application | Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| Woven | Woven Brake Lining Asbestos Free Woven Brake Lining Rolls | Resin | Melamine Resin |
| Main Raw Material | Non-asbestos Yarns | Color | Yellow |
| High Light | Melamine Resin Winch Brake Lining,Ship Anchor Winch Brake Lining,Asbestos Free Winch Brake Lining |
||
Product Description
Woven Brake Lining asbestos free ship anchor brake windlass melamine resin winch brake
Specifications:Woven Brake Lining asbestos free ship anchor brake windlass melamine resin winch brake
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 |
≤2.5 x 10-7 |
Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.
Quick Detail:Woven Brake Lining asbestos free ship anchor brake windlass melamine resin winch brake
1. Standard: GB/T11834-2000
2. Woven roll brake lining roll specification: (5-30)mm x 500 mm
3. Performance: high intensity and wears ability
Description:Woven Brake Lining asbestos free ship anchor brake windlass melamine resin winch brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Competitive Advantage:Woven Brake Lining asbestos free ship anchor brake windlass melamine resin winch brake
Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control. Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.
