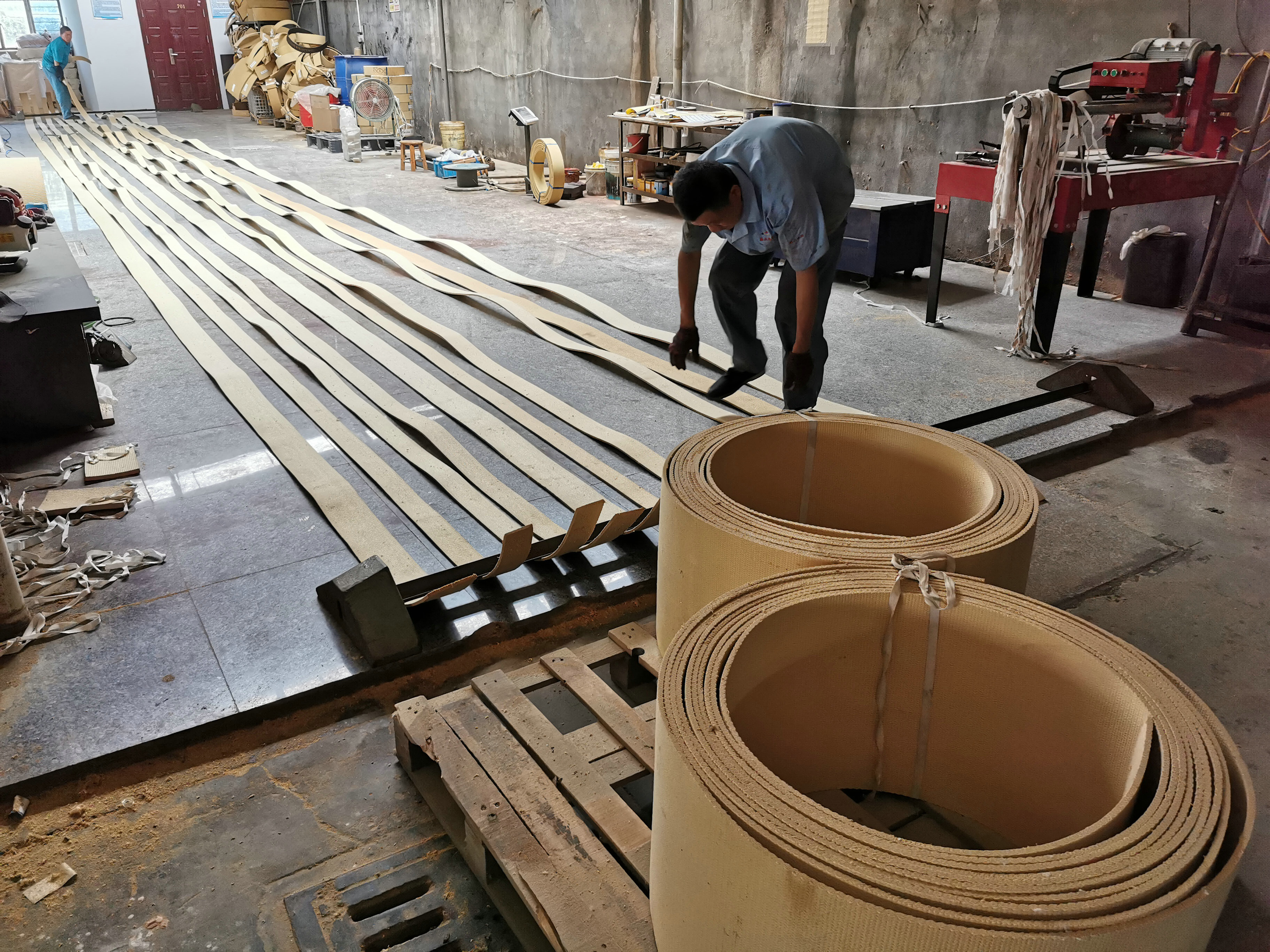

10m Non Asbestos Woven Brake Lining Roll For Ship Winch
|Product Name||Non Asbestos Woven Brake Lining Roll Lifting Machine, Building Machinery, Ship Winch||Product Color||Brown|
|Application||Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Woven Brake Lining Asbestos Free Woven Brake Lining Rolls||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
10m Woven Brake Lining Roll,
Ship Winch Woven Brake Lining Roll,
non asbestos ship winch brake lining
Non Asbestos Woven Brake Lining Roll lifting machine, building machinery, ship winch
Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials.
Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet.
We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Quick Detail:Non Asbestos Woven Brake Lining Roll lifting machine, building machinery, ship winch
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Description:Non Asbestos Woven Brake Lining Roll lifting machine, building machinery, ship winch
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Brake Lining is extensively used in marine and industrial applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural
vehicle, elevator, and construction machinery.
Specifications:Non Asbestos Woven Brake Lining Roll lifting machine, building machinery, ship winch
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
