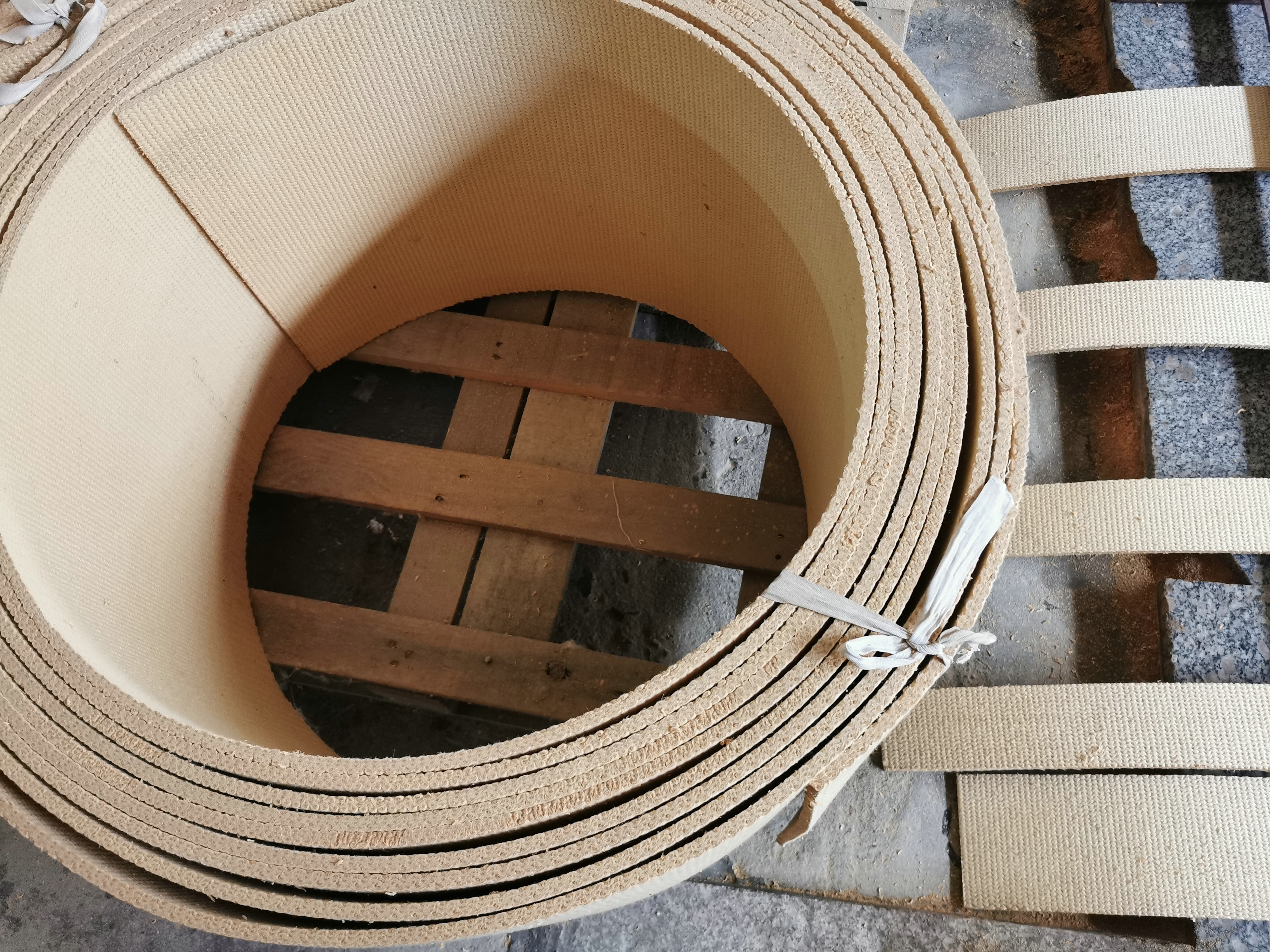

Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires

  • Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires
  • Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires
  • Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires
  • Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Woven Brake Lining Heat Resisting With Copper Wires Ship Anchor Brake Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Non Asbestos Woven Brake Lining

,

Heat Resistant Woven Brake Lining

,

copper wire woven brake lining roll
Leave a Message
Product Description

Non Asbestos Woven Brake Lining Heat Resisting With Copper Wires Ship anchor brake




Ningbo Xinyan Friction Materials Co., Ltd., which is a professional manufacturer of non asbestos woven brake lining. Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.

Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires 0






Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires 1Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires 2

Quick Detail:Non Asbestos Woven Brake Lining Heat Resisting With Copper Wires Ship anchor brake


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:Non Asbestos Woven Brake Lining Heat Resisting With Copper Wires Ship anchor brake

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Brake Lining is extensively used in marine and industrial applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural
vehicle, elevator, and construction machinery.

Heat Resistant Non Asbestos Woven Brake Lining With Copper Wires 3



Specifications:Non Asbestos Woven Brake Lining Heat Resisting With Copper Wires Ship anchor brake



Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
