Pollution Free Windlass Capstan Non Asbestos Woven Brake Lining Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Windlass Capstan Woven Brake Lining Roll

,

Pollution Free Woven Brake Lining Roll

,

non asbestos brake lining material

Leave a Message
Product Description

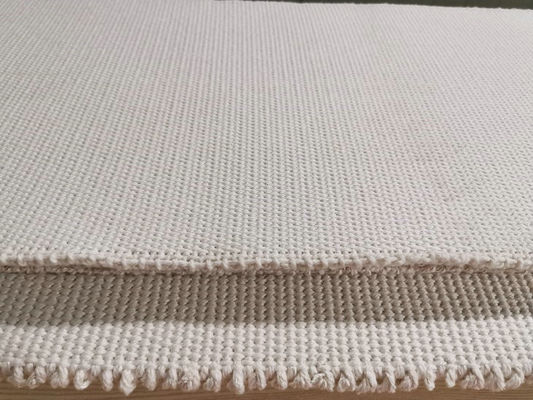

Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material




Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

Pollution Free Windlass Capstan Non Asbestos Woven Brake Lining Roll 0


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Pollution Free Windlass Capstan Non Asbestos Woven Brake Lining Roll 1

Quick Detail:Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Brake Lining is extensively used in marine and industrial applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural
vehicle, elevator, and construction machinery.

Pollution Free Windlass Capstan Non Asbestos Woven Brake Lining Roll 2



Specifications:Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material



Competitive Advantage:Windlass Capstan Non-asbestos Woven Brake Lining Roll Friction Brake Lining Material

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
