Nontoxic Resin Non Asbestos Woven Brake Lining For Tractor
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-M |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift | Product Color | Brown |
|---|---|---|---|
| Application | Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| Woven | Woven Brake Lining Asbestos Free Woven Brake Lining Rolls | Resin | Melamine Resin |
| Main Raw Material | Non-asbestos Yarns | Color | Yellow |
| High Light | Resin Non Asbestos Woven Brake Lining,Nontoxic Non Asbestos Woven Brake Lining,tractor asbestos free brake lining |
||
Product Description

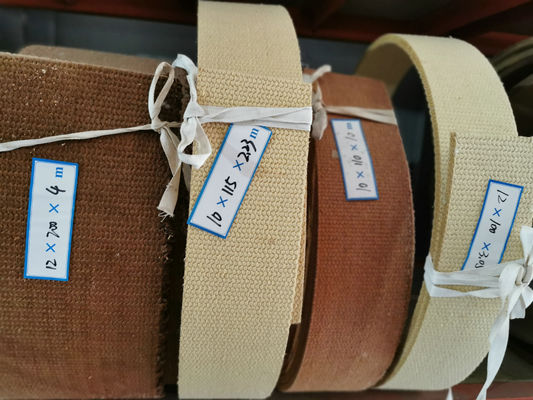

Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Quick Detail:Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Description:Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Brake Lining is extensively used in marine and industrial applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural
vehicle, elevator, and construction machinery.
Specifications:Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift
Competitive Advantage:Anchor Windlass Resin Asbestos Free Woven Brake Lining Roll For Tractor Winch Lift
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
