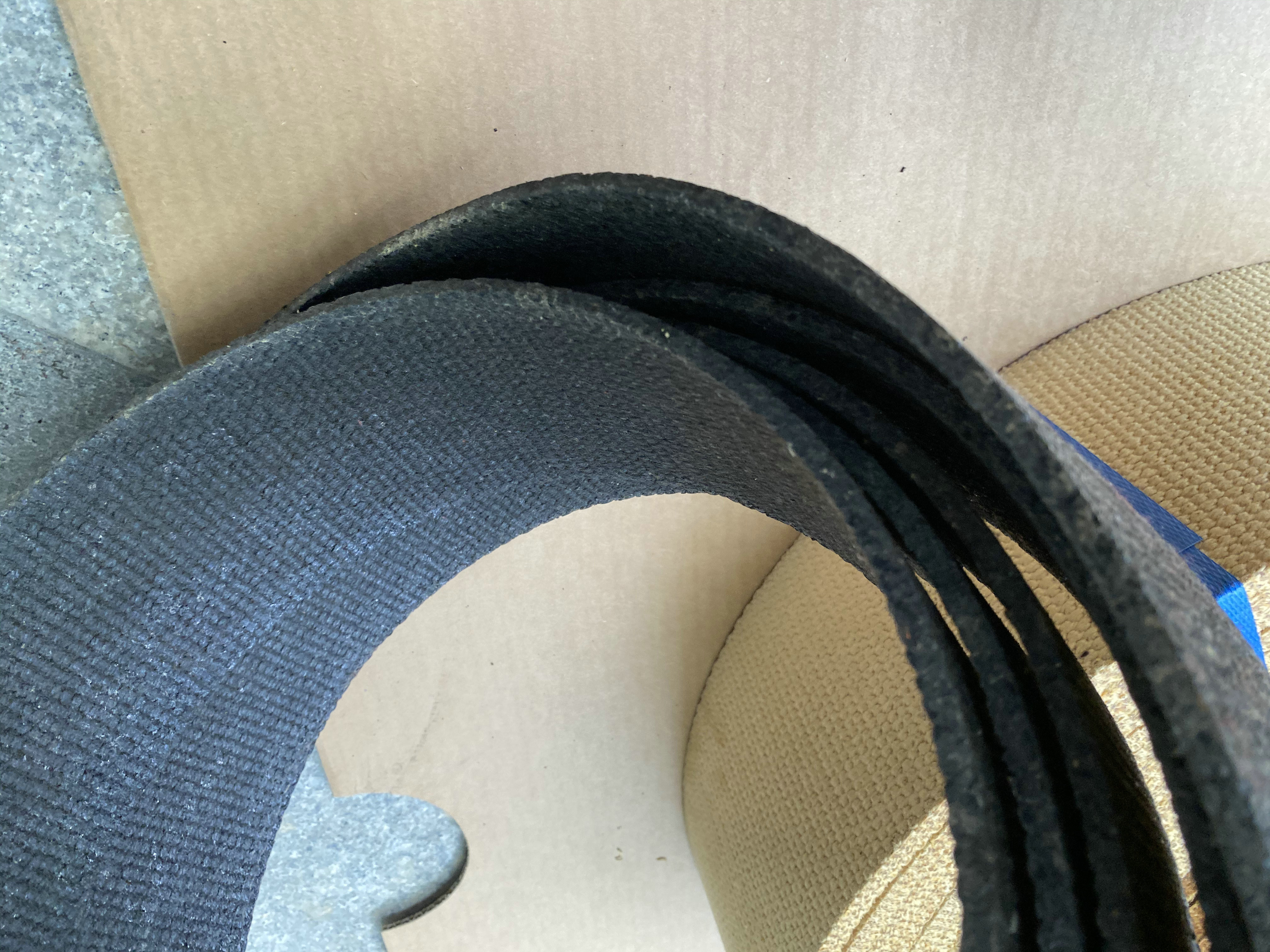

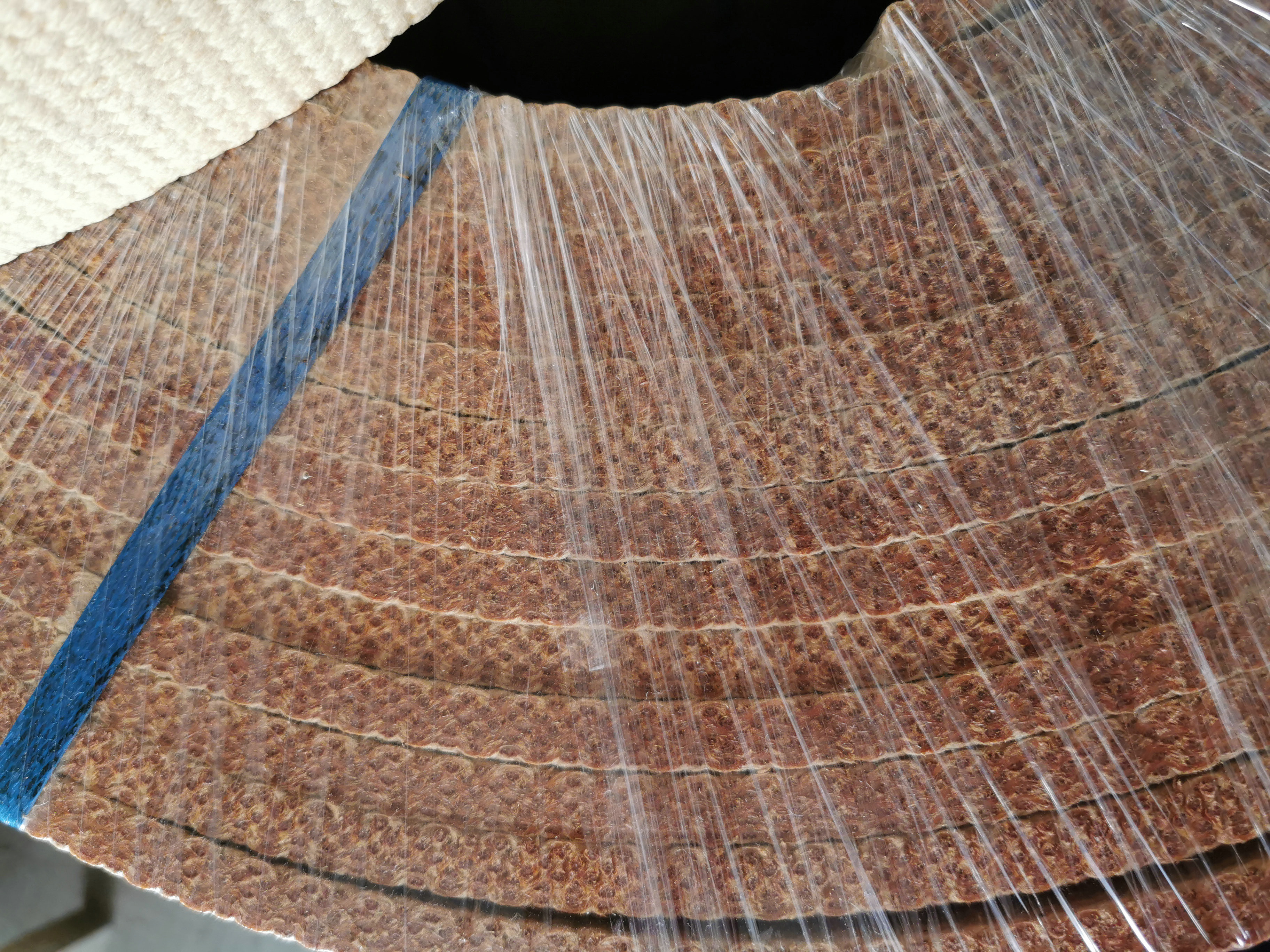

Wire Reinforced Non Asbestos Woven Brake Lining For Windlass
|Product Name||Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass||Product Color||Brown|
|Application||Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Woven Brake Lining Asbestos Free Woven Brake Lining Rolls||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
Wire Reinforced Non Asbestos Brake Lining,
Windlass Non Asbestos Woven Brake Lining,
wire reinforced windlass brake lining
Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass
Our company has more than 10 years experience in manufacturing Brake Lining Rolls, which can bring mutual benefit and profits to you and us.
It's made of friction material, brass wire, yarns and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other industrial fields.
We welcome you to our factory for face-to-face talk.
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Quick Detail:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Description:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.
Specifications:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
