Non Asbestos Flexible Industrial Brake Lining 10 15 20m For Pickup Truck

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons
Product Details
Product Name Flexible Moulded Industrial Brake Lining For Light Truck Pickup Motorcycle Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Industrial Brake Lining 10m


Industrial Brake Lining 15m


non asbestos flexible brake lining material

Leave a Message
Product Description

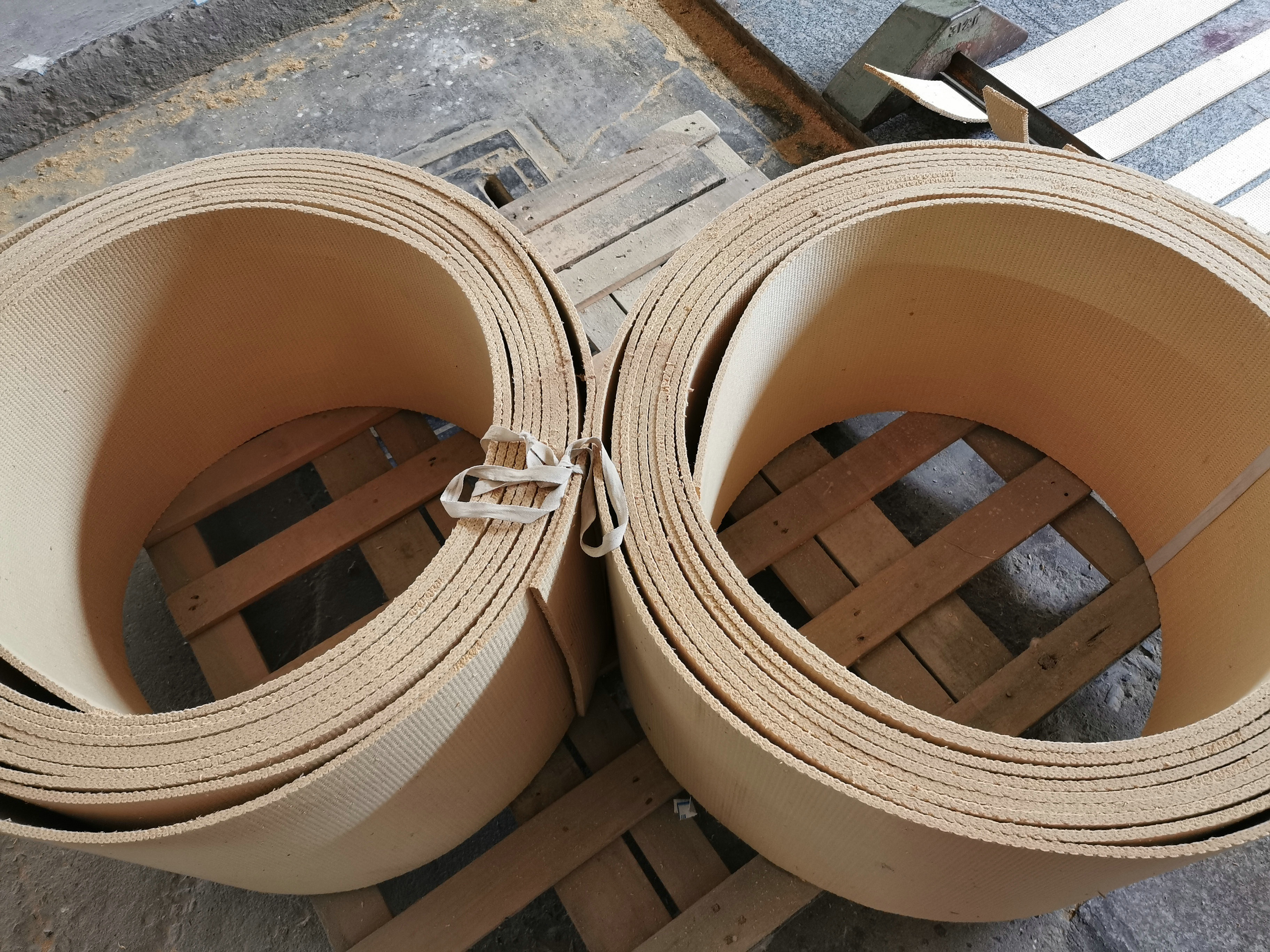

Flexible Moulded Industrial Brake Lining for Light Truck Pickup Motorcycle


Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.


Quick Detail:Flexible Moulded Industrial Brake Lining for Light Truck Pickup Motorcycle

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Description:Flexible Moulded Industrial Brake Lining for Light Truck Pickup Motorcycle

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.

Non Asbestos Flexible Industrial Brake Lining 10 15 20m For Pickup Truck 0
 Non Asbestos Flexible Industrial Brake Lining 10 15 20m For Pickup Truck 1
Specifications:Flexible Moulded Industrial Brake Lining for Light Truck Pickup Motorcycle


Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.


Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
