Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining

  • Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining
  • Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining
  • Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining
  • Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Industrial Brake Lining Roll Brake Liner Without Asbestos Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Woven Brake Lining Roll 10m

,

Woven Brake Lining Roll 15m

,

Non Asbestos Woven Brake Lining 20m
Leave a Message
Product Description

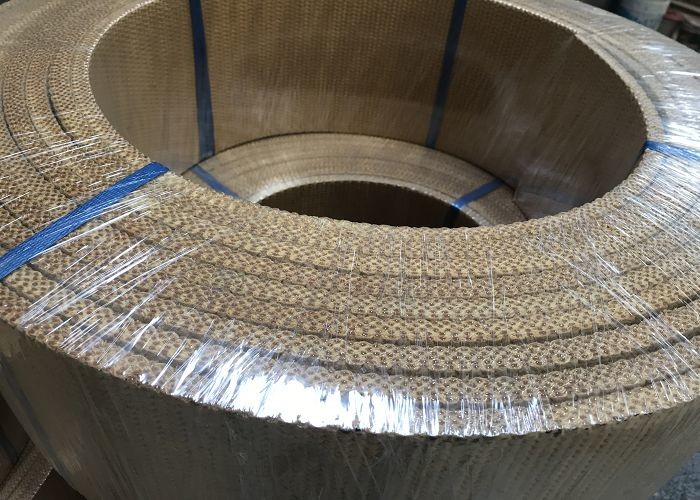

Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.



Quick Detail:Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining

Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining 0







Specifications:Viscose Fiber Flexible Brake Lining Material High Wear Performance Woven Brake Lining



Competitive Advantage:

Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more information.
