Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining

  • Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining
  • Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining
  • Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining
  • Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced Product Color Brown
Application Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Brass Wire Reinforced Woven Brake Lining

,

10m Woven Brake Lining

,

Abrasion Resistant Woven Brake Lining Roll
Leave a Message
Product Description

Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced



Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

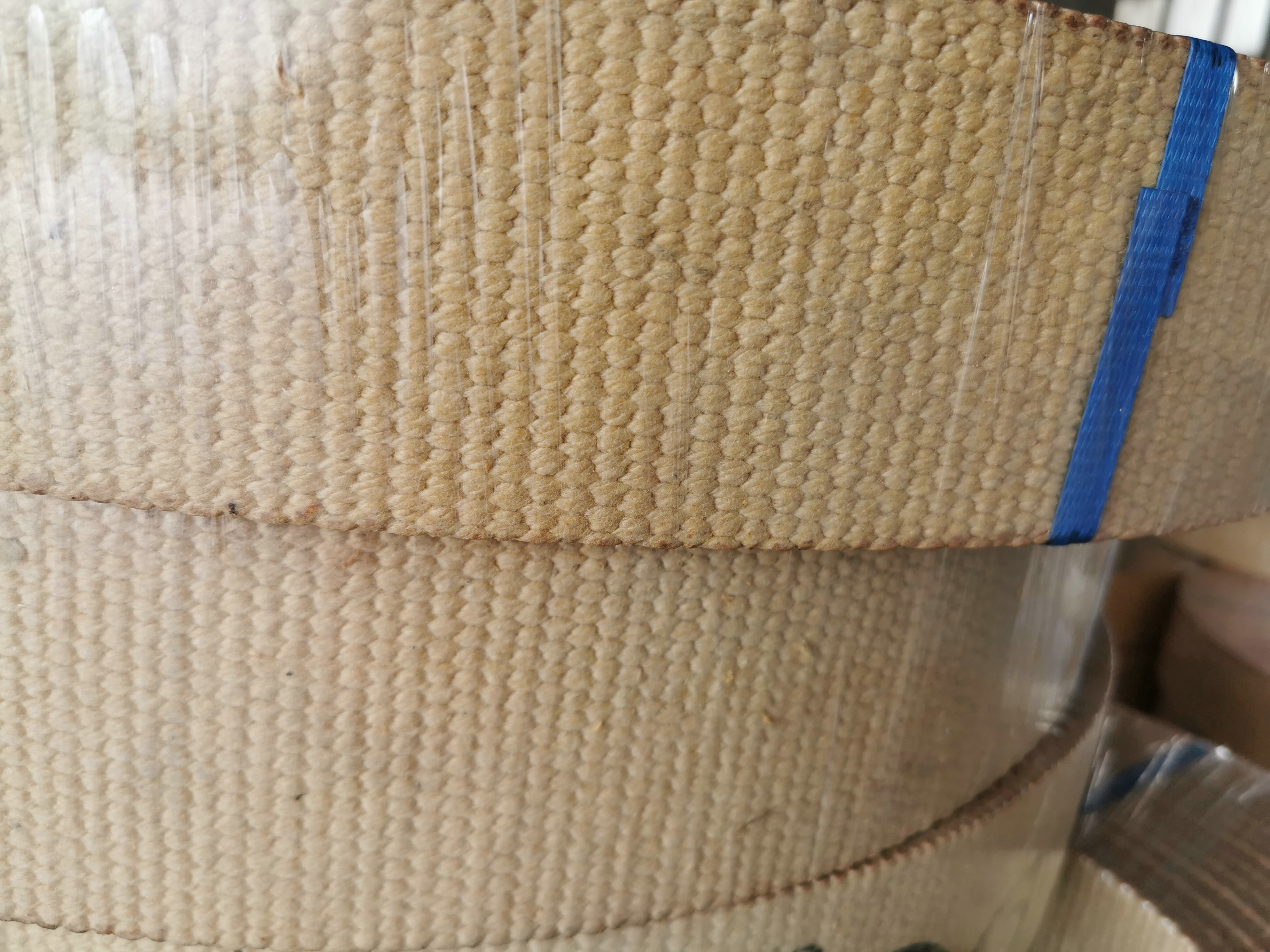

Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining 0



Quick Detail:Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Description:Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced


Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
 Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian, Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker. Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment, Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

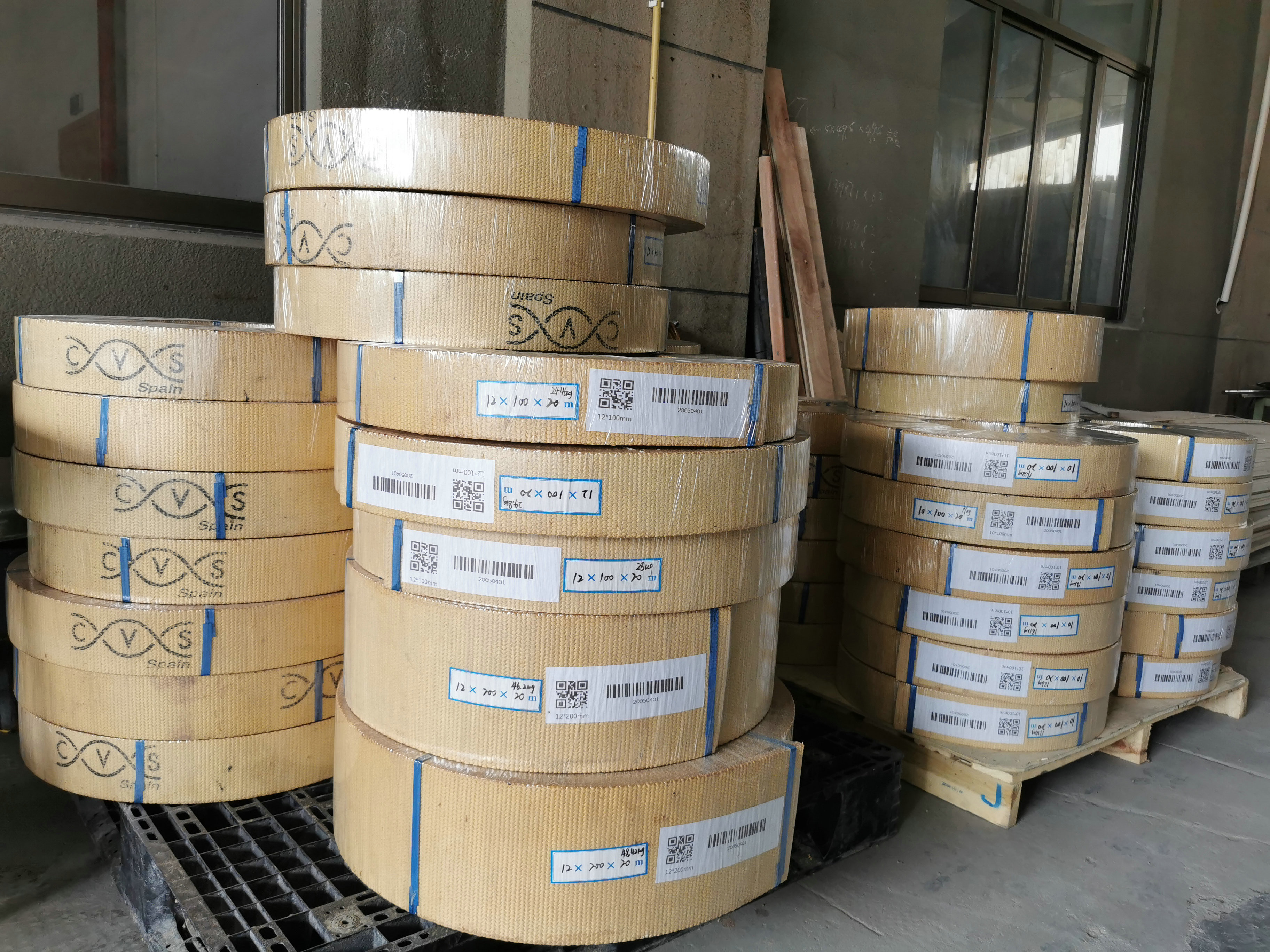

Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining 1

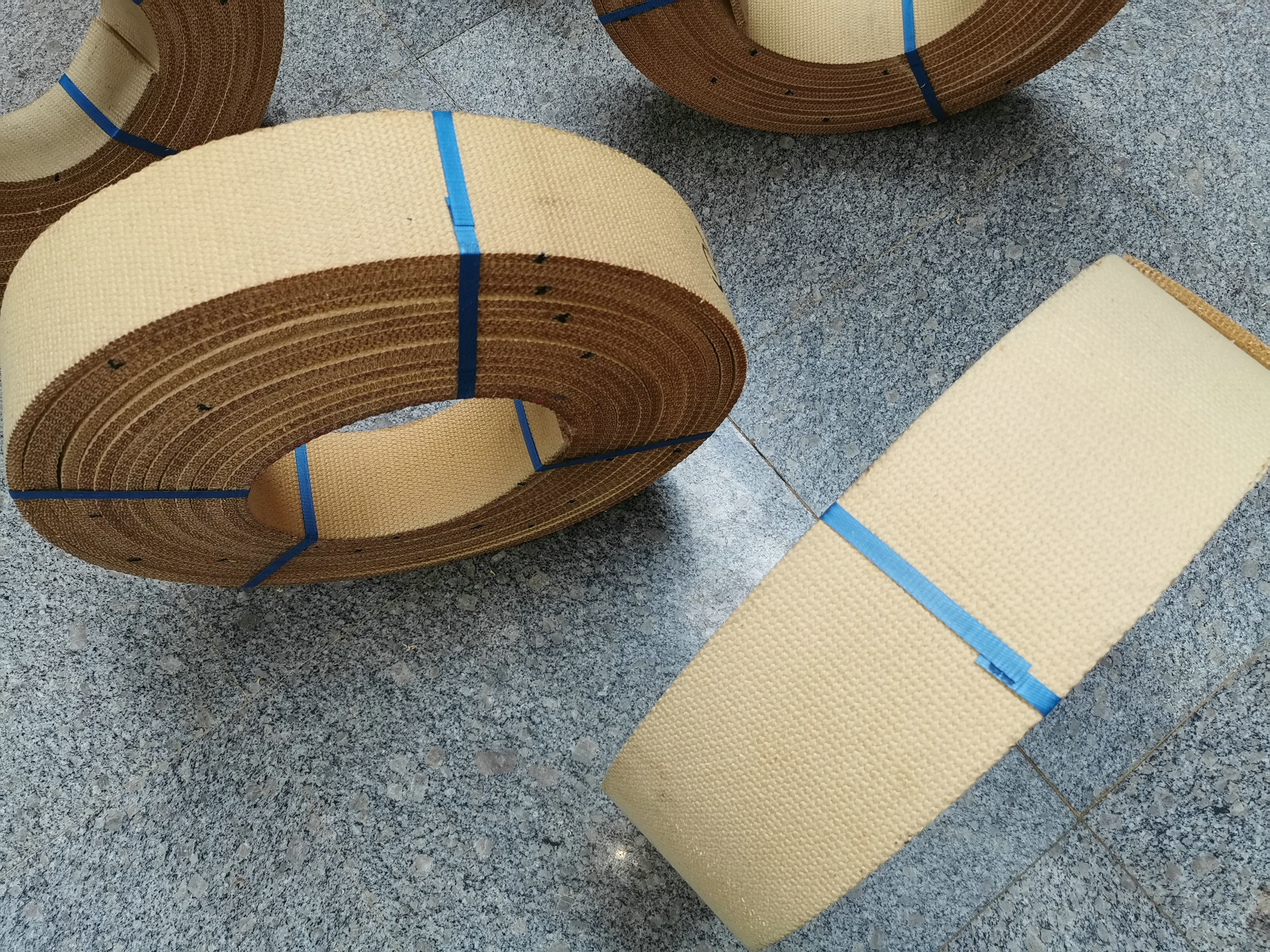

 Abrasion Resistant 10m Brass Wire Reinforced Woven Brake Lining 2

Specifications:Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced



Model:HFS-Y Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, 6 brass wires, Cashew Nut Oil resin.

Working conditions:200℃,Static Pressure: 4.0Mpa

Applied field:Widely used for braking deceleration and transmitting power of big power machineries,such as ship winch, dock crane,drilling machineries, lifting machine,building machinery etc.

Specification:T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m

Color: Brown





Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
