Marine Winch Non Asbestos Woven Brake Lining Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Oil Drilling Anchor Winch Non-asbestos Woven Brake Lining Marine Brake Lining Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Resin Melamine Resin Main Raw Material Non-asbestos Yarns
Color Yellow
High Light

Marine Woven Brake Lining Roll

,

Winch Woven Brake Lining Roll

,

Marine Non Asbestos Woven Brake Lining

Leave a Message
Product Description

Oil Drilling Anchor Winch Non-asbestos Woven Brake Lining Marine Brake Lining



Ningbo Xinyan Friction Materials Co., Ltd.specializes in producing Asbestos and Non-asbestos friction. Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc. It is characterized with high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc.

Marine Winch Non Asbestos Woven Brake Lining Roll 0



We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.



Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.

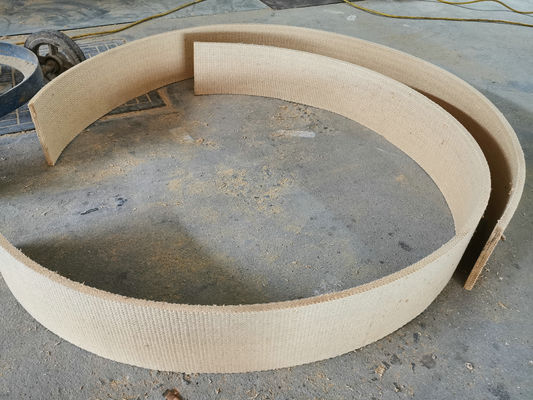

Marine Winch Non Asbestos Woven Brake Lining Roll 1Marine Winch Non Asbestos Woven Brake Lining Roll 2






Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Oil Drilling Anchor Winch Non-asbestos Woven Brake Lining Marine Brake Lining


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Wear - Resistant Brake Shoe Lining Material AsWoven Brake Liningbestos-free
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.


Oil Drilling Anchor Winch Non-asbestos Woven Brake Lining Marine Brake Lining



Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

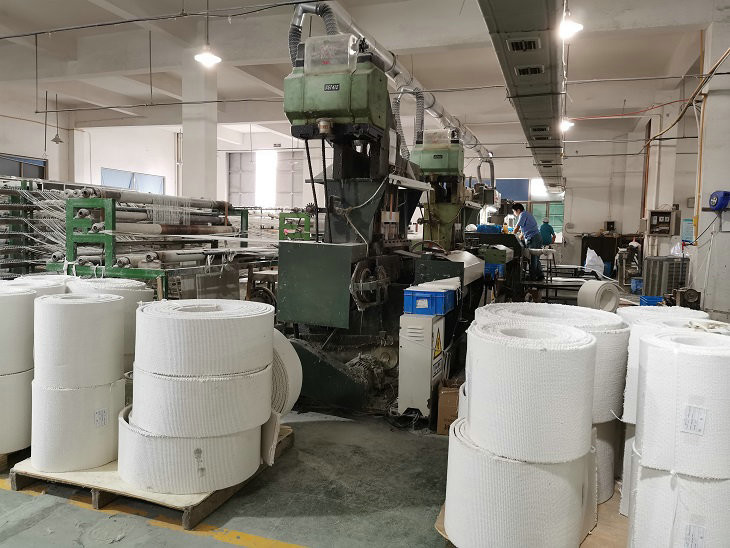

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Marine Winch Non Asbestos Woven Brake Lining Roll 3



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
