Non Asbestos Yarns Industrial Brake Lining Abrasion Resistant
| Place of Origin | CHINA |
|---|---|
| Brand Name | DALU |
| Certification | GB/T 19001-2016/ISO 9001:2015 |
| Model Number | BXS-M |
| Minimum Order Quantity | 0.5 Tons |
| Price | Negotiable |
| Packaging Details | exporting wooden case |
| Delivery Time | 6 weeks after down payment |
| Payment Terms | T/T |
| Supply Ability | 20 Tons |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Non-asbestos Industrial Woven Brake Lining Roll Ship Anchor Drilling Machine Brake | Product Color | Brown |
|---|---|---|---|
| Application | Anchor Winch Non Asbestos Woven Brake Lining Brass Wire Inforced | Size | 10, 15, 20 Meters/roll |
| Material | Brass Wire, Resin, Viscose, | Type | BXS-M |
| Woven | Non-asbestos Industrial Woven Brake Lining Roll Ship Anchor Drilling Machine Brake | Resin | Melamine Resin |
| Main Raw Material | Non-asbestos Yarns | Color | Yellow |
| High Light | Non Asbestos Yarns Woven Brake Lining,Abrasion Resistant Industrial Brake Lining,Melamine Resin Asbestos Free Brake Lining |
||
Product Description

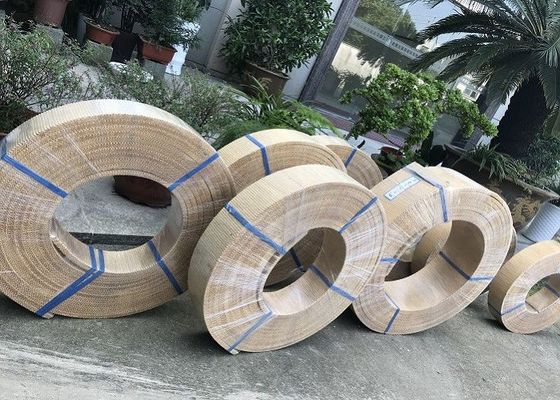

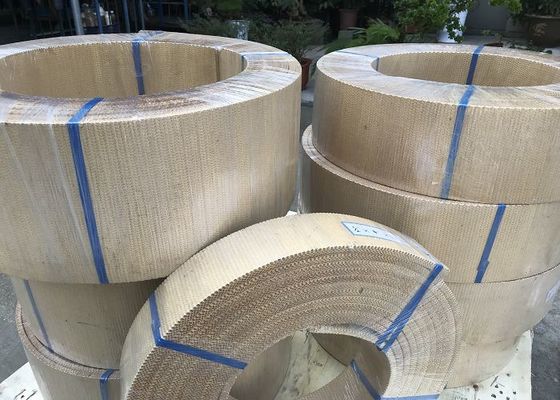

Non-asbestos Industrial Woven Brake Lining Roll ship anchor drilling machine brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Quick Detail:Non-asbestos Industrial Woven Brake Lining Roll ship anchor drilling machine brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Non-asbestos Industrial Woven Brake Lining Roll ship anchor drilling machine brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Non-asbestos Industrial Woven Brake Lining Roll ship anchor drilling machine brake
Competitive Advantage:Brass Wire Reinforced Asbestos Free Brake Lining Woven Lining Rolls Wire Inside Product
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
