Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch

  • Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
  • Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
  • Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
  • Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Oil Resistance Windlass Brake Lining

,

Brass Wire Anchor Windlass Brake Lining

,

10m Winch Brake Lining
Leave a Message
Product Description

Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.





Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch 0Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch 1






Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch 2

Quick Detail:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.


Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch 3Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch 4



Specifications:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch



Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

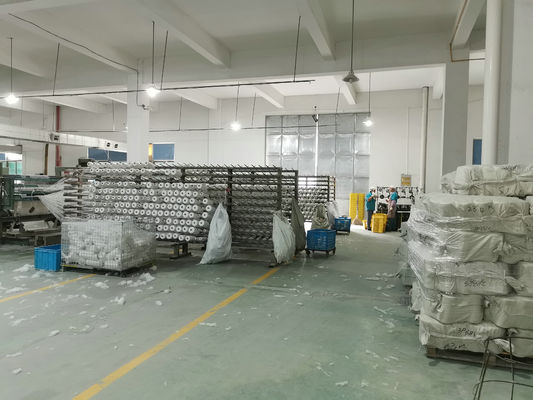

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



For more information, you could  Wechat/Whatsapp at (86) 13771895935. Thank you.
