Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll

  • Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
  • Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
  • Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
  • Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Non Asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Non Asbestos Yarns Industrial Brake Lining

,

Woven Brake Lining Material Non Asbestos

,

Brown Woven Brake Lining Material
Leave a Message
Product Description
Non Asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Specifications:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Applications:Woven Brake Lining is extensively used in marine and industrial applications. It is suitable for winch and windlass, hoist, crane, winder, drilling and workoverrigs, agricultural vehicle, elevator, industrial drum brakes, mining machinery and construction machinery. When it is supplied for use on oil immersed applications,the friction value will be much lower than it is used in dry conditions.


Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.

Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

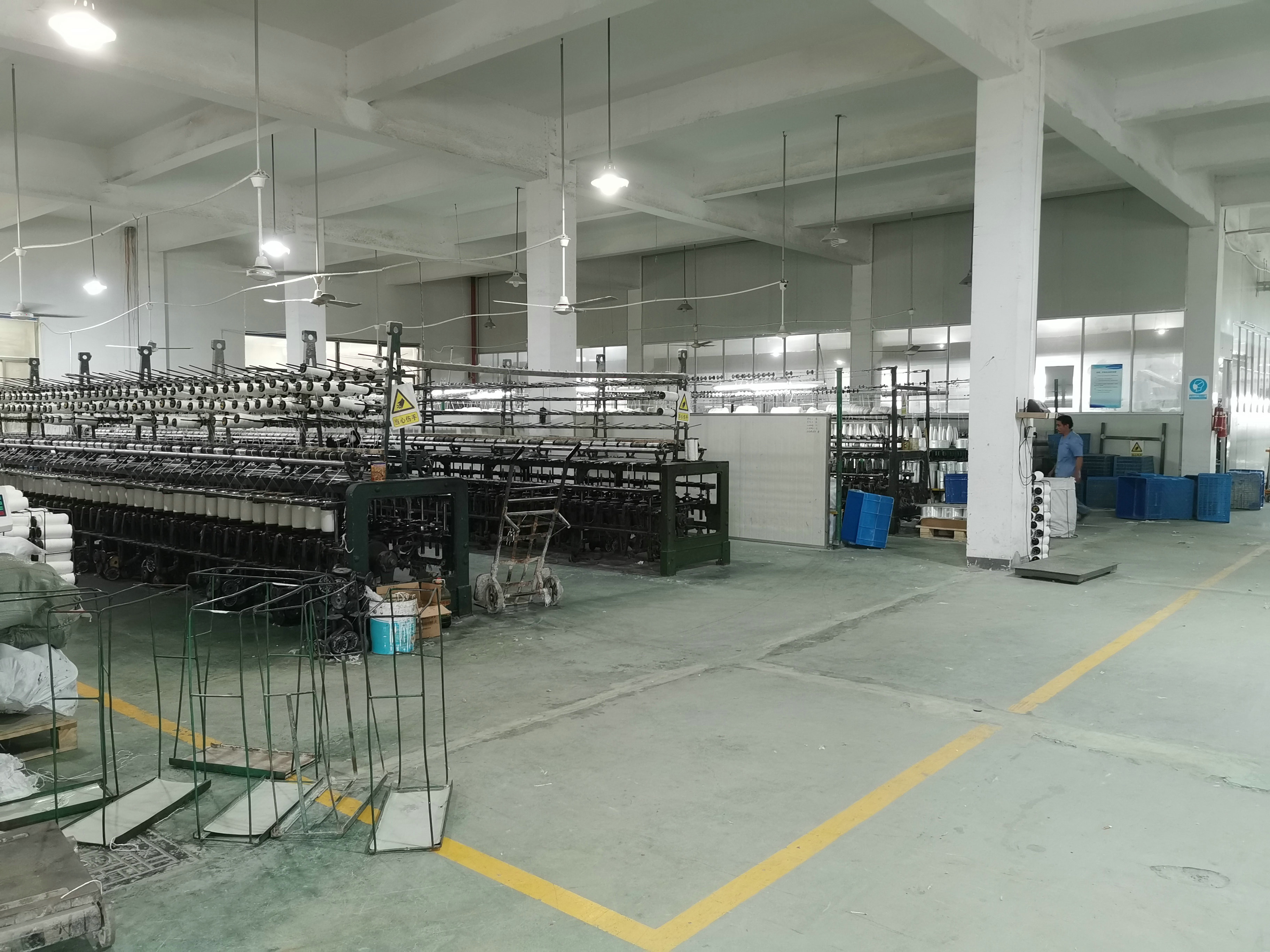

Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.









Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll 0





Quick Detail:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow

Description:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll 1Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll 2



Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll 3
