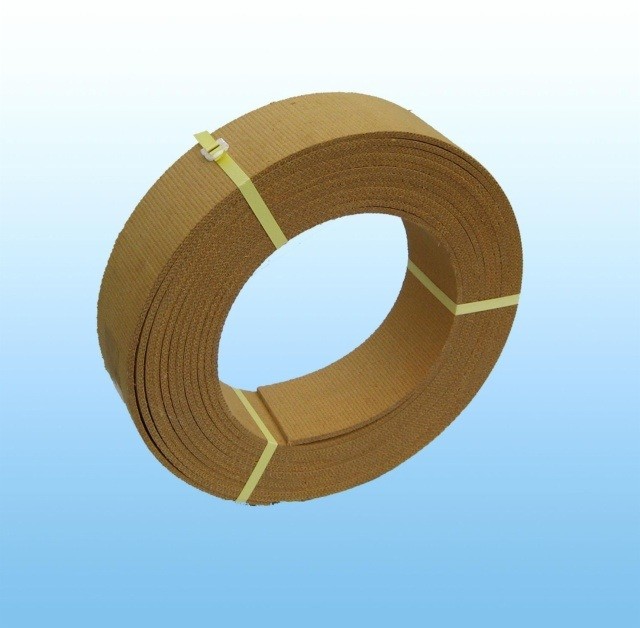

Non Asbestos Woven Brake Lining Abrasion Resistant
|Product Name||Non-asbestos Woven Brake Lining Ship Anchor Brake Lining Windlass Brake Asbestos Free||Product Color||Brown|
|Application||Windlass Woven Brake Lining With Brass Wire Inside Non Asbestos Brake Lining||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Windlass Woven Brake Lining With Brass Wire Inside Non Asbestos Brake Lining||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
Woven Brake Lining Abrasion Resistant,
Temperature Resistant Woven Brake Lining,
Abrasion Resistant Industrial Brake Lining
Non-asbestos Woven Brake Lining ship anchor brake lining windlass brake asbestos free
We are located in Simen Town, Yuyao City, known as "the source of the famous capital, the hometown of Yangming Wang", with a long history and modern civilization,the factory covers an area of 6,000 square meters with a convenient transportation,.Non asbestos woven brake lining, 6 brass wires non asbestos brake lining, brake plate, brake blocks, bake shoes and cotton woven brake lining for your choice.
Quick Detail:Non-asbestos Woven Brake Lining ship anchor brake lining windlass brake asbestos free
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Description:Non-asbestos Woven Brake Lining ship anchor brake lining windlass brake asbestos free
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Specifications:Non-asbestos Woven Brake Lining ship anchor brake lining windlass brake asbestos free
The company's main products: non-asbestos woven brake lining: BXS-M, BXS-L, BXS-Y. Cotton Brake Lining MS-E, and high performance HFS-Y resin brake lining. Brake Block BZW-Y, Brake Plate BZB-Y and other products.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
