Woven Brake Lining Roll Non Asbestos Brown Abrasion Resistant

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ship Anchor Non-asbestos Woven Brake Lining Rolls Windlass Moor Machine Brake Line Product Color Brown
Application Windlass Woven Brake Lining With Brass Wire Inside Non Asbestos Brake Lining Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Windlass Woven Brake Lining With Brass Wire Inside Non Asbestos Brake Lining Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Woven Brake Lining Roll Non Asbestos

,

Woven Brake Lining Roll Brown

,

Abrasion Resistant Brake Lining Roll

Leave a Message
Product Description

ship anchor Non-asbestos Woven Brake Lining rolls windlass moor machine brake line



Quick Detail:ship anchor Non-asbestos Woven Brake Lining rolls windlass moor machine brake line



Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

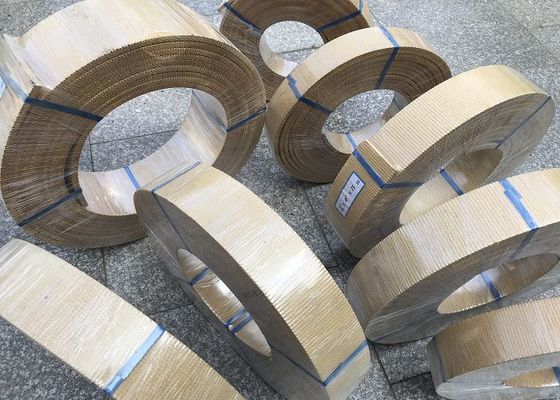

Woven Brake Lining Roll Non Asbestos Brown Abrasion Resistant 0
Description:ship anchor Non-asbestos Woven Brake Lining rolls windlass moor machine brake line


Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.


The company's main products: non-asbestos woven brake lining: BXS-M, BXS-L, BXS-Y. Cotton Brake Lining MS-E, and high performance HFS-Y resin brake lining. Brake Block BZW-Y, Brake Plate BZB-Y and other products. Using high-quality raw materials and foreign advanced technology, through our own spinning, weaving, immersion resin and other integrated production technology, to ensure the stable product quality, safety, reliable performance, can be an effective, durable supplier. We have many types of brake lining, complete specifications, available for national defense, ships, metallurgy, chemical, mining, medical, food machinery and other industries.




Woven Brake Lining Roll Non Asbestos Brown Abrasion Resistant 1

 Woven Brake Lining Roll Non Asbestos Brown Abrasion Resistant 2

Specifications:ship anchor Non-asbestos Woven Brake Lining rolls windlass moor machine brake line



We are located in Simen Town, Yuyao City, known as "the source of the famous capital, the hometown of Yangming Wang", with a long history and modern civilization,the factory covers an area of 6,000 square meters with a convenient transportation,.



Our purpose: high quality production, continuous improvement of skills, safety first is the fundamental of production, be a responsible Chinese enterprise.



The company's main products: non-asbestos woven brake lining: BXS-M, BXS-L, BXS-Y. Cotton Brake Lining MS-E, and high performance HFS-Y resin brake lining. Brake Block BZW-Y, Brake Plate BZB-Y and other products. Using high-quality raw materials and foreign advanced technology, through our own spinning, weaving, immersion resin and other integrated production technology, to ensure the stable product quality, safety, reliable performance, can be an effective, durable supplier. We have many types of brake lining, complete specifications, available for national defense, ships, metallurgy, chemical, mining, medical, food machinery and other industries.



Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
