2 Brass Wires Non Asbestos Brake Lining For Ship Anchor Winch Windlass
|Product Name||Non Asbestos Woven Brake Lining Ship Anchor Brake Winch Windlass Brake||Product Color||Brown|
|Application||Windlass Woven Brake Lining With Brass Wire Inside Non Asbestos Brake Lining||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Non Asbestos Woven Brake Lining Ship Anchor Brake Winch Windlass Brake||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
2 Brass Wires Woven Brake Lining,
Non Asbestos Brake Lining Material Brown,
Winch Windlass Non Asbestos Brake Lining
Non Asbestos Woven Brake Lining Ship Anchor brake Winch windlass brake
Quick Detail: Non Asbestos Woven Brake Lining Ship Anchor brake Winch windlass brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Description:Non Asbestos Woven Brake Lining Ship Anchor brake Winch windlass brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Specifications:Non Asbestos Woven Brake Lining Ship Anchor brake Winch windlass brake
We are located in Simen Town, Yuyao City, known as "the source of the famous capital, the hometown of Yangming Wang", with a long history and modern civilization,the factory covers an area of 6,000 square meters with a convenient transportation,.

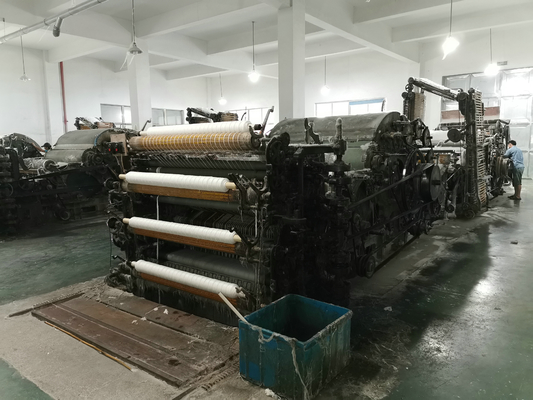

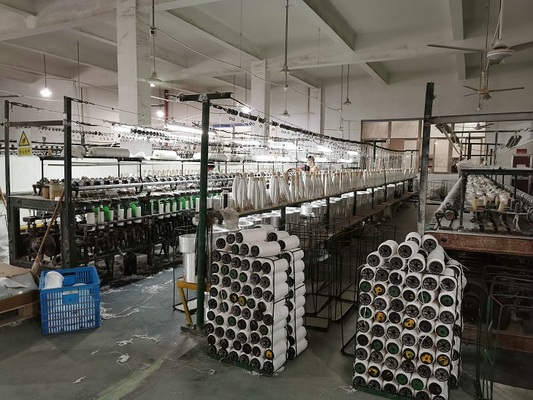

We are specialized in the production of non-asbestos woven brake lining, brake block, brake plate and other friction materials. We use the good quality raw materials and produce yarns by ourself, and then weave into brake lining by Japanese imported weaving machine and self-developed resin impregnated assembly production line and other advanced equipment and production technology. We have the relevant intellectual property rights and patents developed by ourself.
Our purpose: high quality production, continuous improvement of skills, safety first is the fundamental of production, be a responsible Chinese enterprise.
You can scan the following code and visit our factory on line:
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
