20 Meters Non Asbestos Brake Lining For Tractor Winch Lift​

  • 20 Meters Non Asbestos Brake Lining For Tractor Winch Lift​
  • 20 Meters Non Asbestos Brake Lining For Tractor Winch Lift​
  • 20 Meters Non Asbestos Brake Lining For Tractor Winch Lift​
  • 20 Meters Non Asbestos Brake Lining For Tractor Winch Lift​
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anchor Windlass Non Asbestos Woven Brake Lining Roll Woven Roll Lining For Tractor Winch Lift​ Product Color Brown
Application Anchor Windlass Non Asbestos Woven Brake Lining Roll Woven Roll Lining For Tractor Winch Lift​ Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Anchor Windlass Non Asbestos Woven Brake Lining Roll Woven Roll Lining For Tractor Winch Lift​ Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

20 Meters Brake Lining Non Asbestos

,

15 Meters/Roll Windlass Brake Lining

,

Winch Lift​ Brake Lining Non Asbestos
Leave a Message
Product Description

Anchor Windlass Non asbestos Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​



Ningbo Xinyan Friction Materials Co., Ltd., which is a professional manufacturer of non asbestos woven brake lining. Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.

Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.



Woven Brake Linings are widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.





Quick Detail:Anchor Windlass Non asbestos Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Specifications:Anchor Windlass Non asbestos Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​



Company introduction:

We are located in Simen Town, Yuyao City, known as "the source of the famous capital, the hometown of Yangming Wang", with a long history and modern civilization,the factory covers an area of 6,000 square meters with a convenient transportation,.

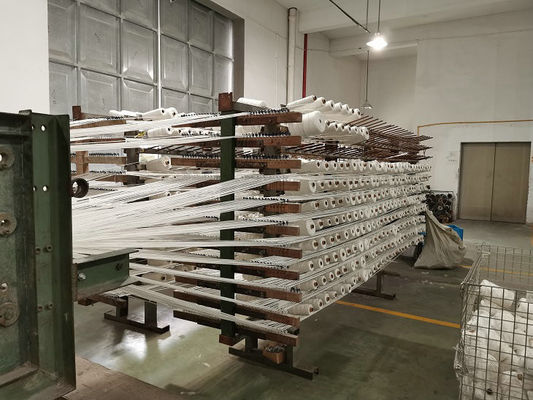

We are specialized in the production of non-asbestos woven brake lining, brake block, brake plate and other friction materials. We use the good quality raw materials and produce yarns by ourself, and then weave into brake lining by Japanese imported weaving machine and self-developed resin impregnated assembly production line and other advanced equipment and production technology. We have the relevant intellectual property rights and patents developed by ourself.
