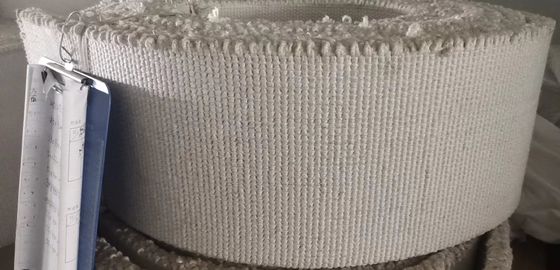

Asbestos Free Woven Resin Brake Lining Brown 20m/Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Asbestos Free Woven Brake Lining, Resin Brake Lining, Non-asbestos Woven Brake Lining Product Color Brown
Application It's Widely Used In Decelerating And Braking Of Engineer Machines, Industry Machine And Mining Machines, Such As Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Etc. Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Non-asbestos Woven Brake Lining Roll With Brass Wire Ship Anchor Brake Lining Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Asbestos Free Brake Lining 20m/roll


Non Asbestos Woven Resin Lining


Asbestos Free Resin Lining

Leave a Message
Product Description

Asbestos Free Woven Brake Lining, resin brake lining, non-asbestos woven brake lining


Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.


We own advanced equipment, top technology and skillful workers in line with the "people-oriented, pragmatic and innovative" company concept, constantly using new technologies, new equipment, new materials, new process, and strive to do better, to develop more new friction, sealing, anti-corrosion, insulation, fire prevention materials to meet the needs of customers both domestic and abroad. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, the product quality is in line with national standards based on a strict inspection process, and has been sold to more than 20 provinces and regions, more than a dozen countries and regions. The products have been selling well in the Americas, Europe and Southeast Asia, and are favored by domestic and foreign customers!


Quick Detail:Asbestos Free Woven Brake Lining, resin brake lining, non-asbestos woven brake lining

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7



Specifications:Asbestos Free Woven Brake Lining, resin brake lining, non-asbestos woven brake lining​


Company introduction:

Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.



You can scan the following code and visit our factory on line:

Asbestos Free Woven Resin Brake Lining Brown 20m/Roll 0

Asbestos Free Woven Resin Brake Lining Brown 20m/Roll 1


Asbestos Free Woven Resin Brake Lining Brown 20m/Roll 2

Asbestos Free Woven Resin Brake Lining Brown 20m/Roll 3

Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
