Winch Brake Lining Non Asbestos 10 15 20 Meters/Roll

Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Winch Brake Lining Non Asbestos Brake Lining Asbestos Free Woven Brake Lining Roll Lining, Non-asbestos Woven Brake Lining Product Color Brown
Application It's Widely Used In Decelerating And Braking Of Engineer Machines, Industry Machine And Mining Machines, Such As Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Etc. Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Non-asbestos Woven Brake Lining Roll With Brass Wire Ship Anchor Brake Lining Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

10 Meters/Roll Winch Brake Lining

,

Brake Lining With Brass Wire

,

15meters/roll Winch Brake Lining

Leave a Message
Product Description

Winch Brake Lining Non Asbestos Brake Lining Asbestos Free Woven Brake Lining Roll



Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.



Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.



Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

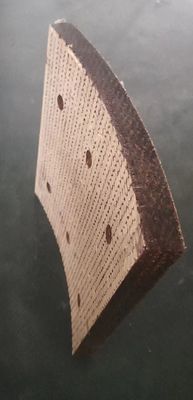

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m


Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7





Specifications:Winch Brake Lining Non Asbestos Brake Lining Asbestos Free Woven Brake Lining Roll



Company introduction:

Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.





You can scan the following code and visit our factory on line:

Winch Brake Lining Non Asbestos 10 15 20 Meters/Roll 0

Winch Brake Lining Non Asbestos 10 15 20 Meters/Roll 1



Winch Brake Lining Non Asbestos 10 15 20 Meters/Roll 2

Winch Brake Lining Non Asbestos 10 15 20 Meters/Roll 3

Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
