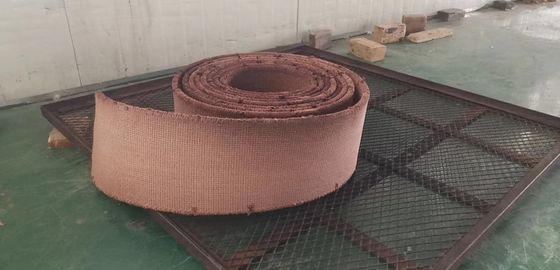

Ship Mooring Windlass Brake Asbestos Free 10m/roll
|Product Name||Non Asbestos Woven Brake Lining Ship Achor Windlass Brake Asbestos Free Brake Pad||Product Color||Brown|
|Application||It's Widely Used In Decelerating And Braking Of Engineer Machines, Industry Machine And Mining Machines, Such As Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, Etc.||Size||10, 15, 20 Meters/roll|
|Material||Brass Wire, Resin, Viscose,||Type||BXS-M|
|Woven||Non-asbestos Woven Brake Lining Roll With Brass Wire Ship Anchor Brake Lining||Resin||Melamine Resin|
|Main Raw Material||Non-asbestos Yarns||Color||Yellow|
Windlass Brake Lining 10m/roll,
Brown Color Windlass Brake Lining,
Asbestos Free Windlass Brake Pad
Non Asbestos Woven Brake Lining Ship Mooring Windlass Brake Asbestos Free Brake Pad
Products Advantage is that we produce the raw materials of non asbestos yarns and weave into brake lining rolls, so that we have the best cost performance.
Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, the product quality is in line with national standards based on a strict inspection process, and has been sold to more than 20 provinces and regions, more than a dozen countries and regions. The products have been selling well in the Americas, Europe and Southeast Asia, and are favored by domestic and foreign customers!
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect price and service. Thank you for the cooperation.
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
|Temperature||Coefficient of friction(μ)||Wear rate(v)(cm³/N.m)|
|100℃||0.35~0.65||≤0.7 x 10-7|
|150℃||0.35~0.65||≤1.1 x 10-7|
|200℃||0.30~0.60||≤1.5 x 10-7|
|250℃||0.25~0.60||≤2.5 x 10-7|
Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.
